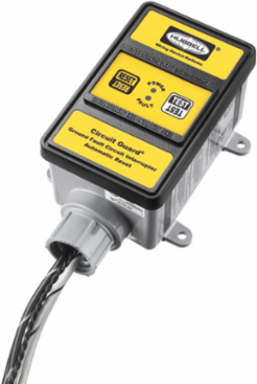

Hubbell Wiring Device-Kellems GFHW13115 Hard Wired GFCI with Audible Alarm, 30A 120V AC, Yellow
Hubbell Wiring Device-Kellems GFHW13115 Hard Wired GFCI with Audible Alarm, 30A 120V AC, Yellow
- MPN: GFHW13115
- UPC: 783585005294
- PPN: HBL-GFHW13115
- UNSPSC: 26121536
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$716.12/ EA
Description
Power Protection Products, Hard Wired GFCI, Industrial/Commercial, Audible Alarm, 30A 120V AC, 4-6 mA Trip Level, Yellow.
Features
- Electromagnetic Latching Mechanism
- Trips if ground and neutral touch at load side
- Red blinking light plus optional audible alarm
- Open neutral protection Trips upon loss of neutral
- Auto Set- Audible Alarm
Specifications
Specifications
- Country of Origin
- US
- Width
- 5.800 in
- Industry Standard(s)
- UL Listed
- Amperage Rating
- 30 A
- Color
- Yellow
- Number of Conductors
- 3
- Standard
- UL Listed
- Temperature Rating
- -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
- Voltage Rating
- 120 VAC
- Voltage Rating Description
- 120 VAC
- Connectivity
- Hard Wired
- Style
- Automatic Set
- Description - Invoice
- HW GFCI, 30A 120V, AUTO, W/ENUN
- Harmonization Code
- 8536308000
- MSDS Flag
- No
- Construction
- Fabricated
- Material - Insulation
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Each - Width5.800 in
PerformanceElectrical - Dielectric Withstand - 1500 VRMS across contact, 4000 VRMS between conductors & enclosure;Electrical - Operating Voltage Range - 85% to 110%;Electrical - Rated Voltage - 120V AC, 240V AC & 120/240V, 3Ø 250V AC, 3Ø 120/208V AC;Electrical - Surge Withstand - 6000V impulse, 0.5 ms rise time 100kHz ringing frequency;Environmental - Construction - Industrial grade design;Environmental - Housing Rating - UL Type 4X;Environmental - Leakage Current - At 93% Humidity leakage current is zero;Environmental - Operating Temperature - -35°C to 66°C, -30°F to 150°F.;Environmental - Type - Class A GFCI
ApplicationWire Into Circuit
Conductor Size#10 AWG
Special FeaturesAuto Set- Audible Alarm
StrandsMulti
TypeHard Wired, Alarm
Weight1.55 lb.
Conductor TypeCopper
Number Of Conductors3
Class CodeA40
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA40A410
Current Rating30 A
SeriesExtra Heavy Duty
BOX SIZE8.000x8.000x8.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585005294
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
