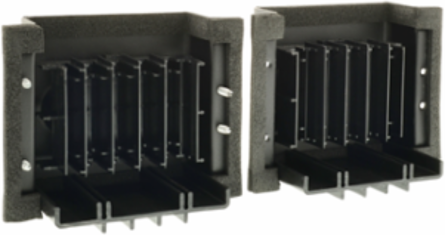

Schneider Electric PB225AEC End closure, Powerbus, max 225A rated
- MPN: PB225AEC
- PPN: APC-PB225AEC
CAD
$292.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square D™ brand I-Line™ Busway, manufactured by Schneider Electric, offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. Schneider Electric offers a high-density version plug-in busway called Powerbus busway with features especially for data center use. Powerbus busway delivers a scalable and flexible overhead plug-in power distribution with the highest tap-off denisty and it simple modularity help minimizes downtime, improve saftey and energy efficiency. Simple modularity minimizes unintended downtime. These busways are available in 100 A, 225 A, 400 A and up to 600 V maximum rating. This accessory is an end closure for busway rated 225A maximum.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Complementary Attributes
| Line Rated Current | 225-225 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI1312018EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1932 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Powerbus |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536904000 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Publishable Date | 2025-11-19 |
| Stocking Flag | Y |
| Device Type | IT Power Distribution - Row Power Distribution |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Or Component Type | End Closure |
| Returnability | Yes |
| Pep Code | ENVPEP1312018EN |
| Package Weight(Lbs) | 1.361 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Circularity Profile | ENVEOLI1312018EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1312018EN |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1312018EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | End Closure |
|---|
| Range Of Product | Powerbus |
|---|
