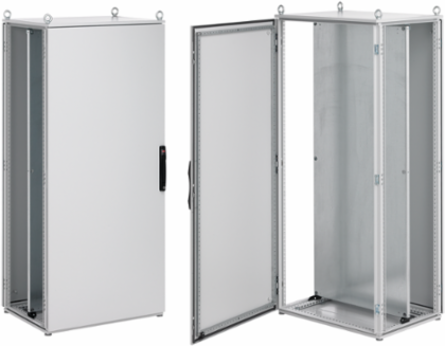

nVent Hoffman PP2086HF ProLine Industrial Packages Type 12 EMC, 2000x800x600, Lt Gray, Steel

MPN: PP2086HF
UPC: 783510299033
PPN: HOF-PP2086HF
UNSPSC: 39121334

$3931.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

ProLine Type 12 Industrial Packages are full-featured solutions that include all components. This ProLine Industrial Packages Type 12 EMC, PP2086HF item measures 2000x800x600mm with a material of Steel colored Lt Gray.

Features

Frames are roll-formed, robotically welded with solid steel, fully welded corners; accommodates 25 mm DIN standard
Standard door bars increase strength and rigidity and allow for an extra mounting options
Seamless foam-in-place gasket provides a protective seal against moisture and contaminants
Gasket and latching system together ensure a solid seal with low closure force
Reversible door, left hinged as a default, with 130-degree swing
Galvanized mounting plates
Capped ground studs on door, rear and top panel
Integral frame channels support the full weight of the mounting plates
Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
Door thickness 14 gauge/2.0 mm, carbon steel powder painted – for details please check reference tables
Mounting panel 2.5 mm on single bay, 3.0 mm on double bay, galvanized steel
Rear panel and solid top 1.5 mm, carbon steel powder painted; RAL 7035

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	800
Protection Rating	NEMA Type 12
Material	Mild Steel
Color	Light Gray
NEMA Rating	12 Indoor, dust-resistant
Sub Brand	ProLine
