nVent Hoffman PPOD18165 ProLine Industrial Packages Type 12 2-Dr, 1800x1600x500, Lt Gray, Steel
- MPN: PPOD18165
- UPC: 783510198145
- PPN: HOF-PPOD18165
- UNSPSC: 39121334
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

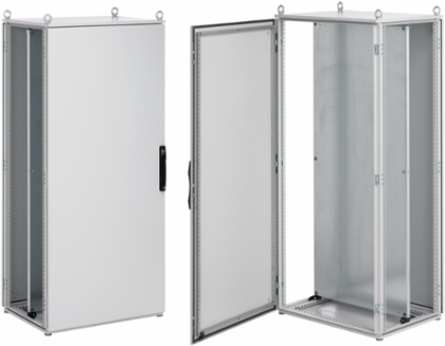

ProLine Type 12 Industrial Packages are full-featured solutions that include all components. This ProLine Industrial Packages Type 12 2-Dr, PPOD18165 item measures 1800x1600x500mm with a material of Steel colored Lt Gray.
Features
- Frames are roll-formed, robotically welded with solid steel, fully welded corners; accommodates 25 mm DIN standard
- Standard door bars increase strength and rigidity and allow for an extra mounting options
- Seamless foam-in-place gasket provides a protective seal against moisture and contaminants
- Gasket and latching system together ensure a solid seal with low closure force
- Reversible door, left hinged as a default, with 130-degree swing
- Galvanized mounting plates
- Capped ground studs on door, rear and top panel
- Integral frame channels support the full weight of the mounting plates
- Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
- Door thickness 14 gauge/2.0 mm, carbon steel powder painted – for details please check reference tables
- Mounting panel 2.5 mm on single bay, 3.0 mm on double bay, galvanized steel
- Rear panel and solid top 1.5 mm, carbon steel powder painted; RAL 7035
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,600
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Weight
- 548
- Material
- Steel
- Color
- Lt Gray
Height (H)1,800
Depth (D)500
Product FamilyProLine
Color CodeRAL 7035
Sub BrandProLine
Size1800x1600x500mm
NEMA Rating12 Indoor, dust-resistant
