nVent Hoffman

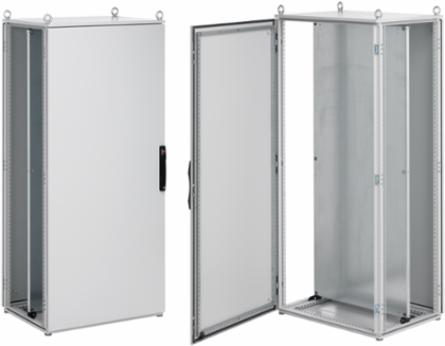

nVent Hoffman PPOD20105 ProLine Industrial Packages Type 12 2-Dr, 2000x1000x500, Lt Gray, Steel

ProLine Industrial Packages Type 12 2-Dr, 2000x1000x500, Lt Gray, Steel
  • MPN: PPOD20105
  • UPC: 783510198022
  • PPN: HOF-PPOD20105
  • UNSPSC: 39121334

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4232.31/ EA

Description

ProLine Type 12 Industrial Packages are full-featured solutions that include all components. This ProLine Industrial Packages Type 12 2-Dr, PPOD20105 item measures 2000x1000x500mm with a material of Steel colored Lt Gray.

Features

  • Frames are roll-formed, robotically welded with solid steel, fully welded corners; accommodates 25 mm DIN standard
  • Standard door bars increase strength and rigidity and allow for an extra mounting options
  • Seamless foam-in-place gasket provides a protective seal against moisture and contaminants
  • Gasket and latching system together ensure a solid seal with low closure force
  • Reversible door, left hinged as a default, with 130-degree swing
  • Galvanized mounting plates
  • Capped ground studs on door, rear and top panel
  • Integral frame channels support the full weight of the mounting plates
  • Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
  • Door thickness 14 gauge/2.0 mm, carbon steel powder painted – for details please check reference tables
  • Mounting panel 2.5 mm on single bay, 3.0 mm on double bay, galvanized steel
  • Rear panel and solid top 1.5 mm, carbon steel powder painted; RAL 7035

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
1,000
Protection Rating
NEMA Type 12
Finish
Powder Coated
NEMA Rating
12 Indoor, dust-resistant
Sub Brand
ProLine
Size
2000x1000x500mm
Height (H)2,000
Depth (D)500
Product FamilyProLine
Color CodeRAL 7035
Weight119
MaterialSteel
ColorLt Gray

Downloads
