Weidmuller 1301640000 PPV 8 OR 35X7.5 DGR
- MPN: 1301640000
- PPN: WDM-1301640000
CAD
$40.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

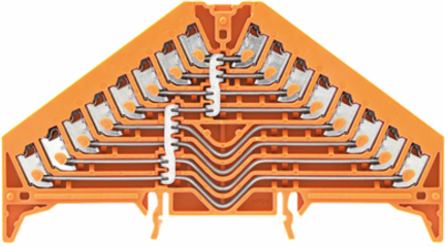

P-series, Potential distributor, Rated cross-section: 1.5 mm², Number of levels: 8, Number of connections: 32, Colour: orange
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, cURus, EAC |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 9.2 mm |
|---|---|
| Height | 120 mm |
| Depth | 65.5 mm |
| Net weight | 50.65 g |
| Width (inches) | 0.362 inch |
|---|---|
| Height (inches) | 4.724 inch |
| Depth (inches) | 2.579 inch |
Additional Technical Data
| Type of mounting | Snap-on |
|---|
Material Data
| Material | Polycarbonate |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | orange |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
System Specifications

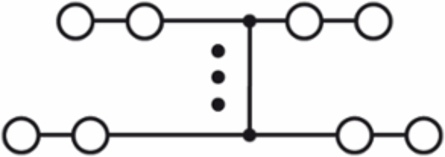

| Version | PUSH IN connection, Vertically cross-connected, One end without connector |
|---|---|
| Number of clamping points per level | 4 |
| Levels cross-connected internally | Yes |
| Rail | TS 35 x 7.5 |
| Number of levels | 8 |
|---|---|
| Number of potentials per tier | 1 |
| PE connection | No |
Temperatures
| Storage temperature, max. | 70 °C |
|---|---|
| Storage temperature | -25 °C...70 °C |
| Continuous operating temp., min. | -50 °C |
| Temperature range, installation, max. | 40 °C |
| Storage temperature, min. | -25 °C |
|---|---|
| Temperature range, installation, min. | -10 °C |
| Continuous operating temp., max. | 130 °C |
Rating Data
| Rated cross-section | 1.5 mm² |
|---|---|
| Power loss in accordance with IEC 60947-7-x | 0.56 W |
| Volume resistance according to IEC 60947-7-x | 1.83 mΩ |
|---|
Conductors For Clamping (Rated Connection)
| Clamping range, max. | 1.5 mm² |
|---|---|
| Connection cross-section, stranded, max. | 1.5 mm² |
| Number of connections | 32 |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, min. | AWG 24 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Clamping range, min. | 0.13 mm² |
|---|---|
| Connection cross-section, stranded, min. | 0.5 mm² |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 16 |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
Ul Rating Data
| Certificate No. (cURus) | E60693 |
|---|---|
| Conductor size Factory wiring min. (cURus) | 26 AWG |
| Conductor size Field wiring min. (cURus) | 26 AWG |
| Current size D (cURus) | 10 A |
| Voltage size D (cURus) | 300 V |
| Conductor size Factory wiring max. (cURus) | 16 AWG |
|---|---|
| Conductor size Field wiring max. (cURus) | 16 AWG |
| Current size B (cURus) | 10 A |
| Voltage size B (cURus) | 300 V |
