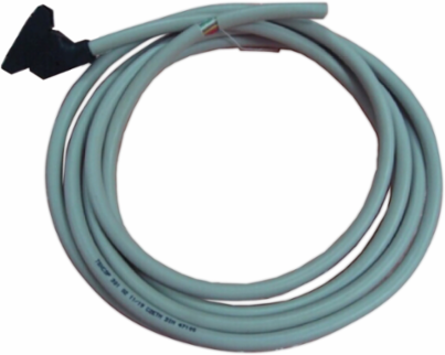

Schneider Electric TSXCDP301 Preformed Cable 3 Meter with 22AWG and HE10 Connector
- MPN: TSXCDP301
- PPN: SCH-TSXCDP301
- UNSPSC: 32151703
CAD
$122.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This cable is part of the Modicon TSX Micro range, an offer of compact and modular PLCs up to 484 I/Os. This preformed cable is used to connect the sensors, pre-actuators or terminals directly to the counting modules. The length of this cable is 3m. The connecting cable offers 22AWG gauge with 0.324mm² wire section. It is furnished with 20-way HE10 insulated connector for module side and 4 color-coded free end wires for PLC side. It weighs 0.4kg. The main application of this module is machine and manufacturing control, infrastructures. It is compatible with TSXCCY1128, TSXCTY4A, TSXCTY2C,TSXCFY11, TSXCTY2A and TSXCFY21. With micro's accuracy, flexibility and increased productivity, it is a real partner at the heart of the machine. Compact and modular PLC for OEM machine builders and infrastructure, with up to 484 I/O.
Documentation & Downloads
Specifications
Key Specifications
- Length
- 3 m
- Range Of Product
- Modicon Premium
- Accessory / Separate Part Category
- connection accessories
- Accessory / Separate Part Destination
- Modicon Premium PLC || servo drive
Weight0.4 kg
Accessory / Separate Part Designationpreformed cable
Accessory / Separate Part Typeconnecting cable
Complementary
- Awg Gauge
- AWG 22
- Wire Section
- 0.324 mm²
- Product Compatibility
- TSXCCY1128 || TSXCTY4A || TSXCTY2C || TSXCFY11 || TSXCTY2A || TSXCFY21
Electrical Connection1 insulated connector HE10, 20 ways module side || free end with 4 colour-coded wires PLC side
Cable Length3 m
Net Weight0.4 kg
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1312013EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileN/A
Mercury FreeYes
Toxic Heavy Metal FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Contractual warranty
- Warranty
- 18 months
