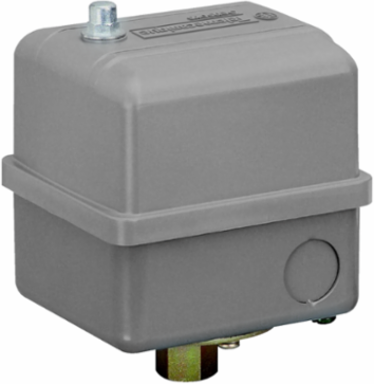

Telemecanique Sensors 9013GSG2J24P Square D Pumptrol, pump or compressor switch 9013GS, adjustable diff., 40 60 PSI
- MPN: 9013GSG2J24P
- UPC: 785901962380
- PPN: TES-9013GSG2J24P
- UNSPSC: 39122210
CAD
$142.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Pumptrol, pump or compressor switch 9013GS, adjustable diff., 40 60 PSI
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Pressure Sensor Name
- 9013GS
- Product Specific Application
- control electrically driven water pumps and air compressors
- Electrical Circuit Type
- power circuit
Type Of Packingindividual
Value Of Setting40...60 psi
Quantity Per Set1
Pressure Sensor Size80 psi 5-60 psi)
Complementary
- Pressure Sensor Type
- electromechanical pressure switch
- Materials In Contact With Fluid
- zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm
- Approximate Adjustable Differential
- 15-30 psi
- Terminals Description Iso N°1
- L2-T2 || L1-T1
- Repeat Accuracy
- +/- 3 %
- Factory Modification
- pulsation plug
- Contacts Type And Composition
- 2 NC, snap action, DPST-DB, Form YY
- Local Display
- without
- Electrical Durability
- 100000 cycles 10 cyc/mn
- Cable Entry Number
- 3 knock-outs for 1/2" conduit UL 508
- [Ui] Rated Insulation Voltage
- 575 V UL 508
- Setting
- internal
- Mechanical Durability
- 300000 cycles
- Operating Position
- any position
- Depth
- 3.88 in
- Destruction Pressure
- 300 psi
Pressure Actuatordiaphragm
Height5.4 in
Terminal Block Type4 terminals
Short-Circuit Protection20 A cartridge fuse gG
Pressure Switch Type Of Operationregulation between 2 thresholds
Maximum Operating Rate10 cyc/mn
Adjustable Range On Rising Pressure20-80 psi
Net Weight2.25 lb(US)
Fluid Connection Type0.25 inch NPSF internal UL 508
Electrical Connectionscrew-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm²
Controlled Fluidair -22-257 °F) || fresh water -22-257 °F)
Scale Typeadjustable differential
Materialpolypropylene Cover || noryl thermoplastic resin or equivalent Cover
Width3.44 in
Motor Power Kw1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 0.75 kW 1 hp)115 V DC || 0.75 kW 1 hp)230 V DC || 3.75 kW 5 hp)230 V AC, 3 phase || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 3 phase || 3.7 kW 5 hp)575 V AC, 1 phase || 3.7 kW 5 hp)575 V AC, 3 phase
Environment
- Product Certifications
- CSA file LR25490 || UL listed file E12158
- Standards
- NSF ANSI 372 || UL 508 || CE
- Ambient Air Temperature For Storage
- -33-257 °F
- Protective Treatment
- none
Ambient Air Temperature For Operation-33-257 °F
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Nema Degree Of ProtectionNEMA 1 UL 50
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111211EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111210EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
