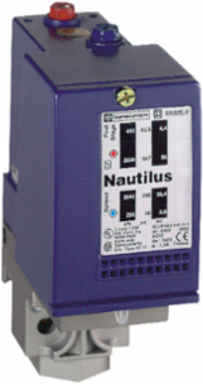

Telemecanique Sensors XMLD160D1S13 pressure switch XMLD 160 bar - 2 stages fixed scale - 2 C/O

MPN: XMLD160D1S13
PPN: TES-XMLD160D1S13
UNSPSC: 39122210

$789.75

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

pressure switch XMLD 160 bar - 2 stages fixed scale - 2 C/O

Documentation & Downloads

Specifications

Key Specifications

Contacts Type And Composition	2 C/O snap action, silver contacts \|\| 2 C/O staggered, silver contacts
Pressure Actuator	piston
Range Of Product	Telemecanique Pressure sensors XM
Pressure Switch Type Of Operation	detection of 2 single thresholds
Product Or Component Type	electromechanical pressure sensor
Local Display	without
Pressure Sensor Size	160 bar
Awg Gauge	AWG 20...AWG 14
Product Specific Application	dual stage
Enclosure Material	zinc alloy
Destruction Pressure	720 bar

Pressure Sensor Type	electromechanical pressure sensor
Electrical Connection	screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
Line Rated Current	3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 \|\| 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 \|\| 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1
Cable Entry	cable gland
Materials In Contact With Fluid	FPM, FKM \|\| brass \|\| PTFE \|\| steel
Fluid Connection Type	1/4" - 18 NPTF (female)
Controlled Fluid	hydraulic oil 0-160 °C)
Scale Type	fixed differential
Electrical Circuit Type	control circuit
Maximum Permissible Accidental Pressure	360 bar
Device Short Name	XMLD

Complementary

Repeat Accuracy	2 %
Terminal Block Type	8 terminals
Spread Between 2 Stages	6-83 bar
Net Weight	0.75 kg
Maximum Permissible Pressure - Per Cycle	200 bar
[Ui] Rated Insulation Voltage	300 V UL 508 \|\| 500 V EN/IEC 60947-1 \|\| 300 V CSA C22.2 No 14
Mechanical Durability	6000000 cycles
Depth	85 mm
Maximum Resistance Across Terminals	25 mOhm IEC 255-7 category 3 \|\| 25 mOhm NF C 93-050 method A

Height	113 mm
Short-Circuit Protection	10 A cartridge fuse gG (gl)
Natural Differential At High Setting	20 bar
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-1
Maximum Operating Rate	60 cyc/mn
Setting	external
Width	46 mm
Natural Differential At Low Setting	8.8 bar

Environment

Product Certifications	CSA \|\| EAC \|\| UL
Standards	UL 508 \|\| CE \|\| EN/IEC 60947-5-1 \|\| CSA C22.2 No 14
Shock Resistance	50 gn IEC 60068-2-27
Ambient Air Temperature For Storage	-40-70 °C
Operating Position	any position

Ambient Air Temperature For Operation	-25-70 °C
Vibration Resistance	4 gn 30-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 conforming to EN/IEC 60529
Protective Treatment	TC standard version
Electrical Shock Protection Class	class I IEC 1140 \|\| class I IEC 536 \|\| class I NF C 20-030

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110914EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
