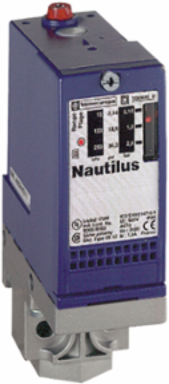

Telemecanique Sensors XMLA500D2S12 pressure switch XMLA 500 bar - fixed scale 1 threshold - 1 C/O
- MPN: XMLA500D2S12
- PPN: TES-XMLA500D2S12
- UNSPSC: 39122210
CAD
$333.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XMLA electromechanical pressure switch has a fixed differential for detection of a single threshold and a zinc alloy body with a range scale window. This pressure switch is designed for detection of a single pressure threshold in hydraulic oils up to 160°C. It is fixed directly on tubage. It provides zinc alloy enclosure for robust performance. 6 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, LROS, UL 508, EAC, BV. It is designed for very high pressures up to 500bar, this makes it ideal for hydraulic presses, water jet cutting machines.
Documentation & Downloads
Specifications
Key Specifications
- Contacts Type And Composition
- 1 C/O
- Pressure Actuator
- piston
- Range Of Product
- Telemecanique Pressure sensors XM
- Pressure Switch Type Of Operation
- detection of 1 single threshold
- Product Or Component Type
- electromechanical pressure sensor
- Materials In Contact With Fluid
- FPM, FKM || stainless steel || brass || steel || PTFE
- Fluid Connection Type
- G 1/4 (female) ISO 228
- Controlled Fluid
- hydraulic oil 0-160 °C)
- Scale Type
- fixed differential
- Enclosure Material
- zinc alloy
- Maximum Permissible Accidental Pressure
- 1125 bar
- Device Short Name
- XMLA
Pressure Sensor Typeelectromechanical pressure sensor
Electrical Connectionscrew-clamps terminals, 1 x 0.5...2 x 2.5 mm²
[In] Rated Current3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 || 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 || 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1
Cable Entrycable gland 7-13 mm
Adjustable Range Of Switching Point On Falling Pressure10-455 bar
Local Displaywith
Pressure Sensor Size500 bar
Awg GaugeAWG 20...AWG 14
Electrical Circuit Typecontrol circuit
Adjustable Range Of Switching Point On Rising Pressure30-500 bar
Destruction Pressure2250 bar
Complementary
- Repeat Accuracy
- 2 %
- Terminal Block Type
- 4 terminals
- Natural Differential At High Setting
- 45 bar +/- 10 bar)
- Auxiliary Contacts Operation
- snap action
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-1
- Maximum Operating Rate
- 60 cyc/mn
- Setting
- external
- Width
- 35 mm
- Natural Differential At Low Setting
- 20 bar +/- 6 bar)
Height113 mm
Short-Circuit Protection10 A cartridge fuse gG (gl)
Contacts Materialsilver contacts
Net Weight0.75 kg
Maximum Permissible Pressure - Per Cycle625 bar
[Ui] Rated Insulation Voltage300 V UL 508 || 500 V EN/IEC 60947-1 || 300 V CSA C22.2 No 14
Mechanical Durability3000000 cycles
Depth75 mm
Maximum Resistance Across Terminals25 mOhm IEC 255-7 category 3 || 25 mOhm NF C 93-050 method A
Environment
- Product Certifications
- EAC || BV || UL || CCC || CSA || LROS (Lloyds register of shipping)
- Standards
- UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || CE
- Shock Resistance
- 50 gn IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70 °C
- Operating Position
- any position
Ambient Air Temperature For Operation-25-70 °C
Vibration Resistance4 gn 30-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 EN/IEC 60529
Protective TreatmentTC standard version
Electrical Shock Protection Classclass I IEC 1140 || class I IEC 536 || class I NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110914EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
