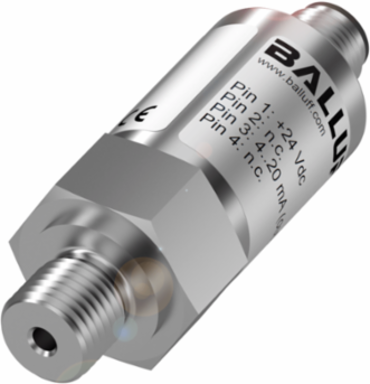

Balluff BSP B060-DV004-A08A1A-S4-005 Pressure sensors without display BSP B060-DV004-A08A1A-S4-005
- MPN: BSP B060-DV004-A08A1A-S4-005
- PPN: BAL-BSP00LF
CAD
$334.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure sensors without display BSP B060-DV004-A08A1A-S4-005
Documentation & Downloads
Specifications
Key Specifications
| Measuring range | 0-60 bar |
|---|---|
| Operating voltage Ub | 8-32 VDC |
| Connection | Connector, M12x1-Male, 4-pin |
| Process connection material | Stainless steel (1.4571) |
| Media temperature | -40-125 °C |
| IP rating | IP67 |
| Accuracy | ±0.5 % FSO BFSL |
|---|---|
| Analog output | Analog, current 4…20 mA |
| Process connection | G 1/4" with pulse protection |
| Housing material | Stainless steel (1.4301) |
| Ambient temperature | -25-85 °C |
| Approval/Conformity | CE, cULus, WEEE |
