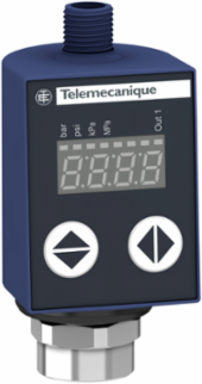

Telemecanique Sensors XMLR250M1P76 Pressure sensor, XMLR, pressure range 250 bar, output 0-10 V + PNP, 1/4-18NPT female, M12 connector, 24 VDC, with display

MPN: XMLR250M1P76
PPN: TES-XMLR250M1P76

$622.32

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Pressure sensor, XMLR, pressure range 250 bar, output 0-10 V + PNP, 1/4-18NPT female, M12 connector, 24 VDC, with display

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Current consumption	<= 50 mA
Analogue output function	0...10 V
Discrete output type	Solid state PNP, NO/NC programmable
Scale type	Fixed differential
Materials in contact with fluid	316L stainless steel
Housing material	316L stainless steel polyacrylamide
Protection type	Overload protection overvoltage protection reverse polarity short-circuit protection
Display type	4 digits 7 segments
Display response time type	Fast 50 ms, normal 200 ms, slow 600 ms
Delay first up	300 ms
Linearity error	<= 0.5 % of the measuring range
Measurement accuracy	<= 0.6 % of the measuring range
Drift of the sensitivity	+/- 0,03 % of measuring range/°C
Display accuracy	<= 1 % of the measuring range

Electrical connection	Male connector M12, 4 pins
Type of output signal	Analogue + discrete
Contacts type and composition	NO/NC programmable
Voltage drop	2 V
Front material	Polyester
Operating position	Any position, but disposals can falsified the measurement in case of upside down mounting
Response time on output	<= 10 ms for analog output, <= 5 ms for discrete output
Time delay range	0...50 s in steps of 1 second
Local signalling	1 LED (yellow) for light ON when switch is actuated
Accuracy	<= 1 % of the measuring range
Hysteresis	<= 0.2 % of the measuring range
Repeat accuracy	<= 0.2 % of the measuring range
Drift of the zero point	+/- 0,01 % of measuring range/°C
Electromagnetic compatibility	Susceptibility to electromagnetic fields: 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, immunity to conducted RF disturbances: 10 V 0.15...80 MHz conforming to IEC 61000-4-6, surge immunity test: 1 kV conforming to IEC 61000-4-5, electrical fast transient/burst immunity test: 2 kV conforming to IEC 61000-4-4, electrostatic discharge immunity test: 8 kV air, 4 kV contact conforming to IEC 61000-4-2

Environment

Marking	CE
Standards	IEC 61326-2-3 UL 61010-1
Vibration resistance	20 gn (f= 10-2000 Hz) conforming to IEC 60068-2-6

Product certifications	cULus
IP degree of protection	IP65 conforming to IEC 60529, IP67 conforming to IEC 60529
Shock resistance	50 gn conforming to IEC 60068-2-27

Main

Range of product	Telemecanique Pressure sensors XM
Pressure sensor type	Pressure transmitter
Device short name	XMLR
Fluid connection type	1/4" - 18 NPT (female)

Product or component type	Electronic pressure sensors
Pressure switch type of operation	Pressure transmitter with 1 switching output
Controlled fluid	Fresh water (0-80 °C), air (-20-80 °C), hydraulic oil (-20-80 °C), refrigeration fluid (-20-80 °C)
Rated supply voltage (Us)	24 V DC SELV (voltage limits: 17-33 V)
