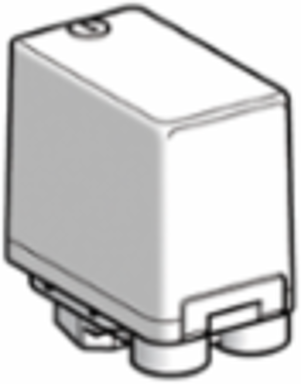

Telemecanique Sensors XMPA12B2131 Pressure sensors XM, pressure sensor XMP, 12 bar, G 1/4 female, 2 NC, without control type
- MPN: XMPA12B2131
- PPN: TES-XMPA12B2131
- UNSPSC: 39122210
CAD
$281.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The XMP switches are electromechanical pressure switches for control circuits. They are used to control the pressure of water and air. It is an IP54 switch with an adjustable differential for regulation between 2 thresholds, without decompression valve. It is a bare case switch, without decompression valve. Ajustable range of switching point: from 1.3bar to 12bar or from 18.85psi to 174psi. 2 NC contacts, G 1/4 female fluid connection, two entries tapped for n°13 cable gland.
Documentation & Downloads
Specifications
Key Specifications
- Contacts Type And Composition
- 2 NC snap action
- Range Of Product
- Telemecanique Pressure sensors XM
- Cable Entry
- 2 entries tapped for Pg 13.5 cable gland NF C 68-300
- Pressure Sensor Name
- XMP
- Electrical Connection
- screw-clamp terminals minimum : 2 x 4 mm²
- Sale Per Indivisible Quantity
- 1
- Scale Type
- adjustable differential
Pressure Sensor Typeelectromechanical pressure sensor
Pressure Switch Type Of Operationregulation between 2 thresholds
Local Displaywithout
Fluid Connection TypeG 1/4 (female) ISO 228
Pressure Sensor Size12 bar
Controlled Fluidair 0-70 °C) || fresh water 0-70 °C) || sea water 0-70 °C)
Electrical Circuit Typepower circuit
Complementary
- Repeat Accuracy
- 3.5 %
- Height
- 106 mm
- Terminals Description Iso N°1
- (3-4)NC || (1-2)NC
- Maximum Operating Rate
- 10 cyc/mn
- Materials In Contact With Fluid
- chromated zinc alloy || canvas covered nitrile
- Net Weight
- 0.43 kg
- Control Type
- Without
- Adjustment Range High Setting
- 1.3-12 bar
- Type Of Decompression Valve
- without
- Operating Position
- any position
- Possible Differential Minimum At High Setting
- 1.7 bar
- Depth
- 98 mm
- Destruction Pressure
- 30 bar
Pressure Actuatordiaphragm
Terminal Block Type4 terminals
Possible Differential Minimum At Low Setting1 bar
Adjustable Range Of Switching Point On Falling Pressure0.3-10.3 bar
Electrical Durability1000000 cycles 1.5 kW 10 cyc/mn 0.4 , 400 V AC 3 phase || 500000 cycles 3 kW 10 cyc/mn 0.4 , 400 V AC 3 phase || 600000 cycles 1.5 kW 10 cyc/mn 0.4 , 230 V AC 3 phase || 700000 cycles 2.2 kW 10 cyc/mn 0.4 , 400 V AC 3 phase
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
[Ui] Rated Insulation Voltage500 V EN/IEC 60947-1
Settingnut
Mechanical Durability1000000 cycles
Enclosure MaterialPA impregnated with fibreglass
Width57 mm
Possible Differential Maximum At High Setting8.4 bar
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Environment
- Product Certifications
- EAC
- Standards
- CE || EN/IEC 60947-4-1
- Shock Resistance
- 50 gn IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-25-70 °C
Vibration Resistance3 gn 10-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP54 conforming to EN/IEC 60529
Electrical Shock Protection Classclass I IEC 60536
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111130EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
