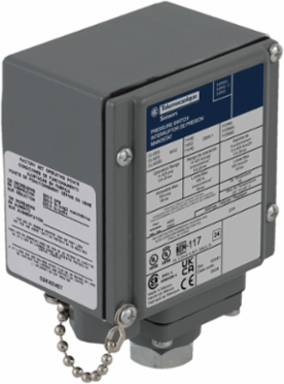

Telemecanique Sensors 9012GBW22 Pressure switch 9012G, adjustable scale, 2 thresholds, 20 to 675 PSIG
- MPN: 9012GBW22
- UPC: 785901047803
- PPN: TES-9012GBW22
- UNSPSC: 39122210
CAD
$1008.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure switch 9012G, adjustable scale, 2 thresholds, 20 to 675 PSIG
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- electromechanical pressure switch
- Maximum Pressure
- 2000 psi
- Contacts Type And Composition
- 2(NC-NO), DPDT-DB, Form ZZ, snap action, silver nickel contacts
- Pressure Sensor Name
- 9012G
- Pressure Sensor Size
- 675 psi
- Scale Type
- adjustable differential
Range Of Product9012G
Pressure Switch Type Of Operationregulation between 2 thresholds
Local Displaywithout
Fluid Connection Type0.25 inch 18 NPTF UL 508
Controlled Fluidhydraulic oil -40-250 °F) || non-corrosive liquids || air || non-corrosive gas
Complementary
- Repeat Accuracy
- 4 %
- Height
- 5.45 in
- Terminal Block Type
- 8 screw terminals
- Line Rated Current
- 3 A 240 V AC A600 NEMA rating designation || 6 A 120 V AC A600 NEMA rating designation || 0.22 A 125 V DC R300 NEMA rating designation || 0.11 A 250 V DC R300 NEMA rating designation
- Electrical Connection
- screw-clamp terminals, AWG 22...AWG 12
- Net Weight
- 3 lb(US)
- Maximum Operating Rate
- 120 cyc/mn
- Mechanical Durability
- 5000000 cycles
- Operating Position
- any position
- Enclosure Material
- die cast aluminium alloy 380
- Width
- 3.5 in
Terminal Identifier(3)gnd || (2-4)NC
Pressure Actuatordiaphragm nitrile (Buna-N)
Short-Circuit Protection10 A cartridge overload and short-circuit protection gL
Range On Decreasing Pressure20-675 psi
Materials In Contact With Fluidzinc plated steel || nitrile (Buna-N)
Local Signallingwithout
Settinginternal
Cable Entry0.5 inch NPT conduit entrance
Electrical Circuit Typecontrol circuit
Approx Adjustable Differential At Mid Range27-130 psi +/- 2.5 % full scale
Depth2.63 in
Environment
- Product Certifications
- CSA LR25490 class 3211 03 || CE
- Standards
- UL 508 || CSA C22.2 No 14
- Vibration Resistance
- 2 gn 40-150 Hz)IEC 68-2-6
Ambient Air Temperature For Operation-10-185 °F
Shock Resistance50 gn IEC 58-2-27
Nema Degree Of ProtectionNEMA 4/4X/13 UL 50
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111211EN
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI111210EN
