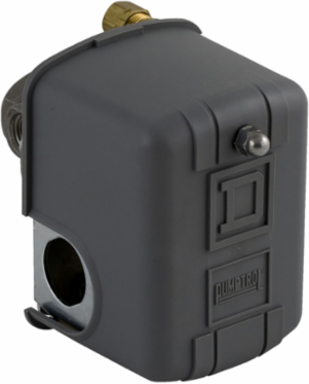

Telemecanique Sensors 9013FHG12J55X Pressure switch, 9013FHG, pressure setting 150 psi, fixed differential, for air compressor, low HP (9013FHG12J55X)

MPN: 9013FHG12J55X
UPC: 785901522942
PPN: TES-9013FHG12J55X

$56.80

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Pressure switch, 9013FHG, pressure setting 150 psi, fixed differential, for air compressor, low HP (9013FHG12J55X)

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Pressure sensor type	Electromechanical pressure switch
Pressure actuator	Diaphragm
Scale type	Fixed differential
Local display	Without
Electrical connection	Screw-clamp terminals, clamping capacity: 10 AWG, screw-clamp terminals, clamping capacity: 5.261 mm²
Materials in contact with fluid	Zinc plated steel or equivalent flange, nitrile (Buna-N) or equivalent rubber diaphragm
Operating position	Any position
Operating rate	10 cycles/min
Terminals description ISO n°1	L1-T1 L2-T2

Controlled fluid	Air (32-158 °F)
Pressure switch type of operation	Regulation between 2 thresholds
Setting	Internal
Contacts type and composition	2 NC, snap action, DPST-DB, Form YY
Fluid connection type	0.25 inch NPSF internal conforming to UL 508
Material	Polypropylene: cover, noryl thermoplastic resin or equivalent: cover
Terminal block type	4 terminals
Repeat accuracy	+/- 3 %
Factory modification	2-way pressure release valve

Main

Range of product	Pumptrol
Value of setting	Off at 150 psi
Product specific application	Control small electrically driven air compressors
Type of packing	Individual
