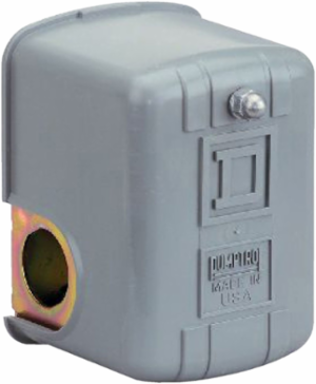

Telemecanique Sensors 9013FSG14J21 Square D Pumptrol, water pump switch 9013FS, adjustable diff., 30 50 PSI
- MPN: 9013FSG14J21
- UPC: 785901961697
- PPN: TES-9013FSG14J21
CAD
$40.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Pumptrol, water pump switch 9013FS, adjustable diff., 30 50 PSI
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Pressure Sensor Name
- 9013FS
- Product Specific Application
- control electrically driven water pumps
- Electrical Circuit Type
- power circuit
Type Of Packingindividual
Value Of Setting30...50 psi
Quantity Per Set1
Pressure Sensor Size65 psi 5-45 psi)
Complementary
- Pressure Sensor Type
- electromechanical pressure switch
- Materials In Contact With Fluid
- zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm
- Approximate Adjustable Differential
- 15-30 psi
- Terminals Description Iso N°1
- L1-T1 || L2-T2
- Repeat Accuracy
- +/- 3 %
- Maximum Operating Rate
- 10 cyc/mn
- Adjustable Range On Rising Pressure
- 20-65 psi
- Net Weight
- 1 lb(US)
- Fluid Connection Type
- 0.25 inch bayonet (barbed) UL 508
- Electrical Connection
- screw-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm²
- Controlled Fluid
- fresh water -22-257 °F)
- Scale Type
- adjustable differential
- Material
- polypropylene Cover || noryl thermoplastic resin or equivalent Cover
- Width
- 2.78 in
- Motor Power Kw
- 1.5 kW 2 hp)230 V AC, 1 phase || 1.1 kW 1.5 hp)115 V AC, 1 phase || 1.5 kW 2 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)575 V AC, 3 phase
Pressure Actuatordiaphragm
Height4.45 in
Terminal Block Type4 terminals
Short-Circuit Protection20 A cartridge fuse gG
Pressure Switch Type Of Operationregulation between 2 thresholds
Contacts Type And Composition2 NC, snap action, DPST-DB, Form YY
Local Displaywithout
Electrical Durability100000 cycles 10 cyc/mn
Cable Entry Number2 0.88 in cable entries with 0.84 in across flats UL 508
[Ui] Rated Insulation Voltage575 V UL 508
Settinginternal
Mechanical Durability300000 cycles
Operating Positionany position
Depth3.76 in
Destruction Pressure220 psi
Environment
- Product Certifications
- UL listed file E12158 || CSA file LR25490
- Standards
- UL 508 || CE || NSF ANSI 61 Annex G
- Ambient Air Temperature For Storage
- -33-257 °F
- Protective Treatment
- none
Ambient Air Temperature For Operation-33-257 °F
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Nema Degree Of ProtectionNEMA 1 UL 50
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111211EN
- Circularity Profile
- ENVEOLI111210EN
Mercury FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
