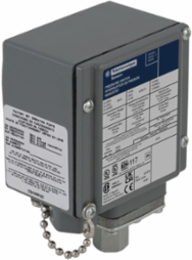

Telemecanique Sensors 9012GKW5 Pressure switch 9012G, fixed scale, 2 thresholds, 3.0 to 150 PSIG
Telemecanique Sensors 9012GKW5 Pressure switch 9012G, fixed scale, 2 thresholds, 3.0 to 150 PSIG
- MPN: 9012GKW5
- UPC: 785901961390
- PPN: TES-9012GKW5
- UNSPSC: 39122210
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$679.80/ EA
Description
Pressure switch 9012G, fixed scale, 2 thresholds, 3.0 to 150 PSIG
Specifications
Environment
- Product Certifications
- UL listed file E12158 CCN NKPZ and CCN NTHT || CE
- Standards
- UL 508 || CSA C22.2 No 14 || CE
- Vibration Resistance
- 2 gn 40-150 Hz)IEC 68-2-6
Ambient Air Temperature For Operation-10-185 °F
Shock Resistance50 gn IEC 58-2-27
Nema Degree Of ProtectionNEMA 4/4X/13 UL 50
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111211EN
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI111210EN
Complementary
- Repeat Accuracy
- 4 %
- Pressure Actuator
- diaphragm nitrile (Buna-N)
- Short-Circuit Protection
- 10 A cartridge overload and short-circuit protection gL
- Range On Decreasing Pressure
- 3-150 psi
- Materials In Contact With Fluid
- zinc plated steel || nitrile (Buna-N)
- Local Signalling
- without
- Approx Fix Differential At Mid Range
- 8 psi stage 1 +/- 2 psig +/- 2.5 % full scale || 12 psi stage 2 +/- 3 psig
- Mechanical Durability
- 5000000 cycles
- Operating Position
- any position
- Enclosure Material
- die cast aluminium alloy 380
- Depth
- 2.63 in
Height5.55 in
Terminal Block Type8 screw terminals
Line Rated Current3 A 240 V AC A600 NEMA rating designation || 6 A 120 V AC A600 NEMA rating designation || 0.27 A 250 V DC R300 NEMA rating designation || 0.22 A 125 V DC R300 NEMA rating designation
Electrical Connectionscrew-clamp terminals, AWG 22...AWG 12
Net Weight2.5 lb(US)
Maximum Operating Rate120 cyc/mn
Settinginternal
Cable Entry0.5 inch NPT conduit entrance
Electrical Circuit Typecontrol circuit
Width3.5 in
Specifications
- Pressure Sensor Type
- electromechanical pressure switch
- Maximum Pressure
- 475 psi
- Contacts Type And Composition
- 2(NC-NO), 2 SPDT-DB, Form Z, snap action, silver nickel contacts
- Pressure Sensor Name
- 9012G
- Pressure Sensor Size
- 150 psi
- Scale Type
- fixed
Range Of Product9012G
Pressure Switch Type Of Operationregulates two separate pressure thresholds
Local Displaywithout
Fluid Connection Type0.25 inch 18 NPTF UL 508
Controlled Fluidhydraulic oil -40-250 °F) || non-corrosive liquids || air || non-corrosive gas
