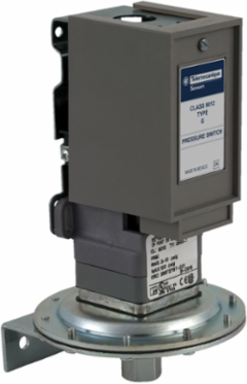

Telemecanique Sensors 9012GPG1 Pressure switch 9012G, adjustable scale, 2 thresholds, 20 to 1000 PSIG
- MPN: 9012GPG1
- UPC: 785901476467
- PPN: TES-9012GPG1
- UNSPSC: 39122210
CAD
$484.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure switch 9012G, adjustable scale, 2 thresholds, 20 to 1000 PSIG
Documentation & Downloads
Specifications
Key Specifications
| Pressure Sensor Type | electromechanical pressure switch |
|---|---|
| Controlled Fluid | hydraulic oil -40-250 °F) || non-corrosive liquids || air || non-corrosive gas |
| Scale Type | adjustable differential |
| Pressure Switch Type Of Operation | regulation between 2 thresholds |
| Local Display | without |
| Fluid Connection Type | 0.25 inch 18 NPTF UL 508 |
| Pressure Sensor Size | 425 psi |
|---|---|
| Range Of Product | 9012G |
| Maximum Pressure | 850 psi |
| Contacts Type And Composition | NC-NO, SPDT, Form C, snap action, silver nickel contacts |
| Pressure Sensor Name | 9012G |
Complementary
| Repeat Accuracy | 4 % |
|---|---|
| Height | 6.84 in |
| Maximum Operating Rate | 120 cyc/mn |
| Short-Circuit Protection | 10 A cartridge overload and short-circuit protection gL |
| Mechanical Durability | 5000000 cycles |
| Range On Decreasing Pressure | 20-1000 psi |
| Operating Position | any position |
| Electrical Connection | screw-clamp terminals, AWG 22...AWG 12 |
| Approx Adjustable Differential At Mid Range | 13-62 psi +/- 2.5 % full scale |
| Depth | 2.75 in |
| Net Weight | 2 lb(US) |
| Terminal Identifier | (2-4)NO || (3)gnd |
|---|---|
| Pressure Actuator | diaphragm nitrile (Buna-N) |
| Terminal Block Type | 4 screw terminals |
| Setting | internal |
| [In] Rated Current | 3 A 240 V AC A600 NEMA rating designation || 3 A 120 V AC A600 NEMA rating designation || 0.27 A 250 V DC R300 NEMA rating designation || 0.22 A 125 V DC R300 NEMA rating designation |
| Cable Entry | 0.5 inch NPT conduit entrance |
| Electrical Circuit Type | control circuit |
| Enclosure Material | thermoplastic |
| Width | 2.21 in |
| Materials In Contact With Fluid | zinc plated steel |
| Local Signalling | without |
Environment
| Product Certifications | UL listed file E12158 CCN NKPZ || UL listed file E12158 CCN NKPZ and CCN NTHT || CE |
|---|---|
| Standards | CE || CSA C22.2 No 14 |
| Shock Resistance | 50 gn IEC 58-2-27 |
| Ambient Air Temperature For Operation | -10-185 °F |
|---|---|
| Nema Degree Of Protection | NEMA 1 UL 50 |
| Vibration Resistance | 2 gn 40-150 Hz)IEC 68-2-6 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI111210EN |
|---|---|
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
| Environmental Disclosure | ENVPEP111211EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
