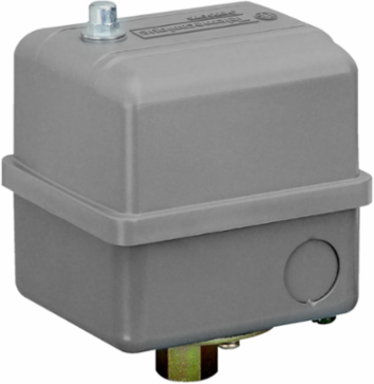

Telemecanique Sensors 9013GHG2J56 Square D Pumptrol, pump or compressor switch 9013GH, adjustable diff., 110 150 PSI
- MPN: 9013GHG2J56
- UPC: 785901053026
- PPN: TES-9013GHG2J56
CAD
$142.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Pumptrol, pump or compressor switch 9013GH, adjustable diff., 110 150 PSI
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Product Specific Application
- control electrically driven water pumps and air compressors
- Electrical Circuit Type
- power circuit
- Type Of Packing
- individual
Value Of Setting110...150 psi
Quantity Per Set1
Pressure Sensor Size200 psi 40-170 psi)
Pressure Sensor Name9013GH
Complementary
- Cable Entry Number
- 3 knock-outs for 1/2" conduit UL 508
- Pressure Sensor Type
- electromechanical pressure switch
- Materials In Contact With Fluid
- zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm
- Approximate Adjustable Differential
- 20-40 psi
- Terminals Description Iso N°1
- L2-T2 || L1-T1
- Controlled Fluid
- air -22-257 °F) || fresh water -22-257 °F)
- Repeat Accuracy
- +/- 3 %
- Scale Type
- adjustable differential
- Material
- polypropylene cover || noryl thermoplastic resin or equivalent cover
- Operating Position
- any position
- Contacts Type And Composition
- 2 NC, snap action, DPST-DB, Form YY
- Depth
- 3.88 in
- Adjustable Range On Rising Pressure
- 65-200 psi
- Local Display
- without
- Electrical Durability
- 100000 cycles 10 cyc/mn
Electrical Connectionscrew-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm²
Pressure Actuatordiaphragm
Height5.4 in
Terminal Block Type4 terminals
[Ui] Rated Insulation Voltage575 V UL 508
Short-Circuit Protection20 A cartridge fuse gG
Settinginternal
Mechanical Durability300000 cycles
Pressure Switch Type Of Operationregulation between 2 thresholds
Maximum Operating Rate10 cyc/mn
Width3.44 in
Motor Power Kw1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phases || 2.2 kW 3 hp)230 V AC, 1 phase || 0.75 kW 1 hp)115 V DC || 0.75 kW 1 hp)230 V DC || 3.75 kW 5 hp)230 V AC, 3 phases || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 3 phases || 3.7 kW 5 hp)575 V AC, 1 phase || 3.7 kW 5 hp)575 V AC, 3 phases
Destruction Pressure300 psi
Net Weight2.25 lb(US)
Fluid Connection Type0.25 inch NPSF internal UL 508
Environment
- Product Certifications
- UL listed file E12158 || CSA file LR25490
- Ambient Air Temperature For Storage
- -33-257 °F
- Nema Degree Of Protection
- NEMA 1 UL 50
- Ip Degree Of Protection
- IP20 IEC 60529
Ambient Air Temperature For Operation-33-257 °F
StandardsUL 508 || CE || NSF ANSI 372
Protective Treatmentnone
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP111211EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
