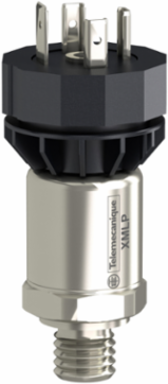

Telemecanique Sensors XMLP100BC21F Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 100 bar, G1/4 A male, 4...20 mA, DIN, set of 1

MPN: XMLP100BC21F
PPN: TES-XMLP100BC21F
UNSPSC: 41111927

$205.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 100 bar, G1/4 A male, 4...20 mA, DIN, set of 1

Documentation & Downloads

Specifications

Key Specifications

Pressure Sensor Type	pressure transmitter
Range Of Product	Telemecanique Pressure sensors XM
Pressure Sensor Size	100-100 bar
Type Of Packing	individual
Pressure Sensor Name	XMLP
Fluid Connection Type	G 1/4A (male) DIN 3852-E
Controlled Fluid	air -30-135 °C) \|\| fresh water 0-135 °C) \|\| hydraulic oil -30-135 °C) \|\| gas -30-135 °C) \|\| refrigeration fluid -30-135 °C)
Electrical Circuit Type	control circuit

Type Of Output Signal	analogue
Electrical Connection	1 male connector EN 175301-803-A (ex DIN43650) 3 pins
Product Or Component Type	electronic pressure sensors
Local Display	without
Current Consumption	< 23 mA
Analogue Output Function	4...20 mA, 2-wire
Quantity Per Set	set of 1
[Us] Rated Supply Voltage	12...24 V DC SELV 7-33 V)

Complementary

Accuracy	0.1 % of the measuring range
[Uimp] Rated Impulse Withstand Voltage	0.5 kV
Electromagnetic Compatibility	electrostatic discharge immunity test EN/IEC 61000-4-2 8 kV air, 4 kV contact \|\| 1.2/50 µs shock waves immunity test EN/IEC 61000-4-5 1 kV 42 Ohm \|\| immunity to magnetic fields EN/IEC 61000-4-8 100 A/m 50 Hz \|\| electrical fast transient/burst immunity test EN/IEC 61000-4-4 4 kV \|\| susceptibility to electromagnetic fields EN/IEC 61000-4-3 10 V/m 80...3000 MHz \|\| radiated RF fields EN/IEC 61000-4-6 10 V 0.01...80 MHz
Length	60.6 mm
Mechanical Durability	10000000 cycles
Measurement Accuracy	+/- 0.5 % of the measuring range
Drift Of The Sensitivity	+/- 0.02 % of measuring range/°K
Destruction Pressure	600 bar
Pressure Setting Range	0-100 bar

Diameter	26 mm
Drift Of The Zero Point	+/- 0.02 % of measuring range/°K
Materials In Contact With Fluid	stainless steel AISI 316L \|\| fluorocarbon FPM
Net Weight	0.11 kg
Operating Position	any position
Protection Type	load short-circuit \|\| reverse polarity
Maximum Permissible Accidental Pressure	300 bar
Response Time On Output	<= 2 ms 10...90 % of full scale

Environment

Product Certifications	EAC \|\| CE \|\| cULus \|\| RCM
Standards	EN/IEC 61326-2-3 \|\| NSF ANSI 61
Vibration Resistance	20 gn 15-2000 Hz) EN/IEC 60068-2-6
Ambient Air Temperature For Storage	-50-100 °C

Ambient Air Temperature For Operation	-30-85 °C
Shock Resistance	100 gn 11 ms EN/IEC 60068-2-27
Ip Degree Of Protection	IP65 conforming to EN/IEC 60529
Protective Treatment	TC

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1511013EN
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
