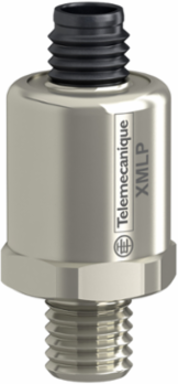

Telemecanique Sensors XMLP6K0PD130 Pressure sensor, XMLP, pressure range 6000 psi, output 0.5-4.5 V DC, 1/4-18NPT, M12 connector
- MPN: XMLP6K0PD130
- PPN: TES-XMLP6K0PD130
CAD
$205.62
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure sensor, XMLP, pressure range 6000 psi, output 0.5-4.5 V DC, 1/4-18NPT, M12 connector
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Materials in contact with fluid | Stainless steel AISI 316L |
|---|---|
| Protection type | Load short-circuit reverse polarity |
| Response time on output | <= 2 ms 10...90 % of full scale |
| Accuracy | 0.1 % of the measuring range |
| Drift of the zero point | +/- 0,02 % of measuring range/°K |
| Operating position | Any position |
|---|---|
| Electromagnetic compatibility | Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 2 kV, electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 1 kV 42 Ohm, immunity to magnetic fields conforming to IEC 61000-4-8 100 A/m 50 Hz, susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...3000 MHz, radiated RF fields conforming to IEC 61000-4-6 10 V 0.01...80 MHz |
| Measurement accuracy | +/- 0,5 % de la plage de mesure |
| Drift of the sensitivity | +/- 0,02 % of measuring range/°K |
Environment
| Standards | IEC 61326-2-3 NSF ANSI 61 |
|---|---|
| Protective treatment | TC |
| Shock resistance | 100 gn for 11 ms conforming to IEC 60068-2-27 |
| Product certifications | CE cULus RCM |
|---|---|
| Vibration resistance | 20 gn (f = 15-2000 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP65 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to IEC 60529 |
Main
| Range of product | Telemecanique Pressure sensors XM |
|---|---|
| Pressure sensor type | Pressure transmitter |
| Electrical circuit type | Control circuit |
| Controlled fluid | Fresh water (0-135 °C), air (-40-135 °C), hydraulic oil (-40-135 °C), gas (-40-135 °C), refrigeration fluid (-40-135 °C) |
| Electrical connection | 1 male connector M12 4 pins |
| Current consumption | < 7 mA |
| Analogue output function | 0.5...4.5 V, 3-wire |
| Type of packing | Individual |
| Product or component type | Electronic pressure sensors |
|---|---|
| Pressure sensor name | XMLP |
| Local display | Without |
| Fluid connection type | 1/4" - 18 NPT (male) |
| Rated supply voltage (Us) | 5 V DC SELV (voltage limits: 4.5-5.5 V) |
| Type of output signal | Analogue |
| Quantity per set | Set of 1 |
