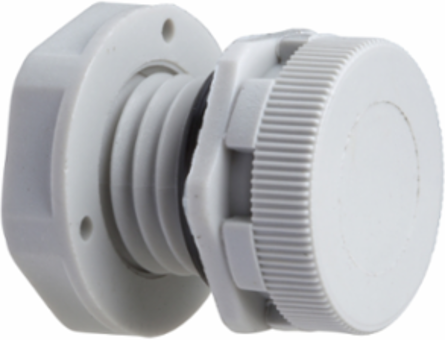

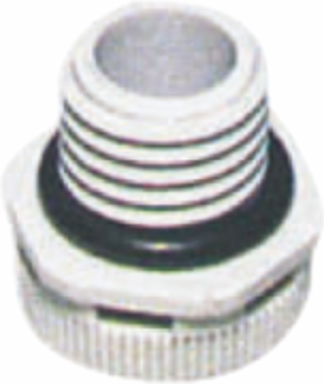

Schneider Electric NSYCAG12LPH2 Sealed pressure balance valves IP68 ØM12 F120 liters/hour when 0,07 bar
- MPN: NSYCAG12LPH2
- PPN: SCH-NSYCAG12LPH2
- UNSPSC: 39121324
CAD
$4.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Set of 10 water resistant pressure release valve 140 x 30mm for PanelSeT PLS, PanelSeT PLM, PanelSeT TBS and PanelSeT TBP enclosures. The product is made from PA6-V2 and membrane is made from acrilic co-polymer. The kit is made of 1 valve. The width is 140mm. Cut-out diameter is 10.2mm. Ingress protection rating (according to IEC 60529) is IP68. Fixing by screws. Flame retardance V2. Flame retardance V2. Pressure difference is less than 0.1 bar. Permeability is 120 l/h.
Features
- PA6-V2, acrylic co-polymer membrane, water- and oil-repelling
- Ingress protection rating: IP68
- Temperature of use: -40... +105 ºC
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|---|
| Width | 5.51 in |
| Height | 1.18 in |
|---|---|
| Weight | 4 g |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Material | membrane acrilic co-polymer, PA6 |
| Carbon Footprint Of The Distribution Phase A4 | 0.007927254130506378, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0011796008892704982, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-15 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1904 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Composition | 1 valve |
| Energy Efficiency Optimized | False |
| Fixing Mode | screwed |
| Permeability | 120 l/h |
| Product Name | ClimaSys CA |
| Quantity Per Set | set of 10 |
| Returnability | No |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Height Nominal | 30 mm |
| Width Nominal | 140 mm |
| Accessory / Separate Part Category | thermal management accessory |
| Customs Code | 8481100090 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 17 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Pressure Difference | < 0.1 bar, < 0.1 bar |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0 kg CO2 eq., 0.007331036845850942 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0 kg CO2 eq., 0.02255876313334571 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Diameter | 10.2 mm |
| Environmental Characteristic | water resistant |
| Flame Retardance | V2 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | pressure release valve |
| Range | ClimaSys |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 0 kg CO2 eq. |
| Data Source | extrapolated product |
| Height Useful | 30 mm |
| Width Real | 140 mm |
| Nbr. Of Units In Pkg. | 1 |
| Silicone Free | Yes |
| Functional Unit Description | To transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 8 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 0.03899665499897353 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0008-ed3-EN-2023 10 19 |
| Ambient Air Temperature For Operation | -40-150 °C, -40-150 °C |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | Yes |
| Environmental Disclosure | ENVPEP2012014EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2012014EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | pressure release valve |
|---|
ETIM
| ETIM 8 | EC000331 |
|---|---|
| ETIM 10 | EC000331 |
| ETIM 9 | EC000331 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
