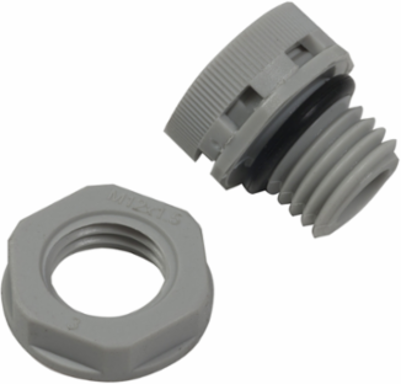

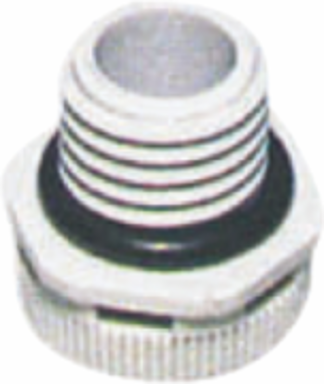

Schneider Electric NSYCAG12LPH1 Sealed pressure balance valves IP68 ØM12 F16 liters/hour when 0,07 bar
Schneider Electric NSYCAG12LPH1 Sealed pressure balance valves IP68 ØM12 F16 liters/hour when 0,07 bar
- MPN: NSYCAG12LPH1
- PPN: SCH-NSYCAG12LPH1
- UNSPSC: 39121321
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4.62/ EA
Description
Set of 10 water resistant pressure release valve 18.3 x 17.1mm for PanelSeT PLS, PanelSeT PLM, PanelSeT TBS and PanelSeT TBP enclosures. The product is made from PA6-V2 and membrane is made from acrilic co-polymer. The kit is made of 1 valve. The width is 18.3mm. Cut-out diameter is 11.5mm. Ingress protection rating (according to IEC 60529) is IP68. Fixing by screws. Flame retardance V2. Flame retardance V2. Pressure difference is less than 1 bar. Permeability is 16 l/h.
Features
- PA6-V2, acrylic co-polymer membrane, water- and oil-repelling
- Ingress protection rating: IP68
- Temperature of use: -40... +105 ºC
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Material
- membrane acrilic co-polymer, PA6
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0 kg CO2 eq., 0.007331036845850942
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0 kg CO2 eq., 0.02255876313334571
- Pressure Difference
- < 1 bar, < 1 bar
- Local Publishable Date
- 2026-02-24
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Composition
- 1 valve
- Energy Efficiency Optimized
- False
- Fixing Mode
- screwed
- Package Weight Lbs
- 4.000 g
- Product Or Component Type
- pressure release valve
- Range
- ClimaSys
- Sustainable Packaging
- No
- Accessory Separate Part Category2
- thermal management accessory
- Stocking Flag
- N
- Pep Code
- ENVPEP2012014_V2
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.007927254130506378, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0011796008892704982, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Data StatusPublishable
ManufacturerSquare D
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Diameter11.5 mm
Environmental Characteristicwater resistant
Flame RetardanceV2
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 10
ReturnabilityYes
Total Lifecycle Carbon Footprint0 kg CO2 eq.
Medium DescSealed pressure balance valves IP68 ØM12 F16 liters/hour when 0,07 bar
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionTo transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; France, FR
Energy Model Use B6 2Electricity Mix; High voltage; 2020; Europe, EU-27
Permeability16 l/h
Product NameClimaSys CA
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.03899665499897353
- Environmental Disclosure
- ENVPEP2012014_V2
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-40-150 °C
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP2012014_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- pressure release valve
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
