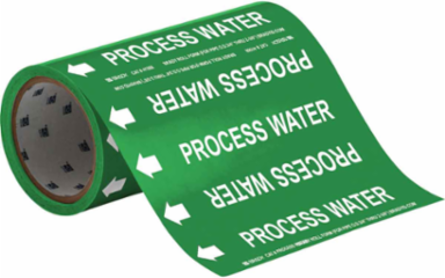

Brady 41568 Process Water Pipe Marker, 30' H x 8" W x 30' L, Roll of 30', Fits Pipes 2" Dia. or Smaller
- MPN: 41568
- UPC: 754473415686
- PPN: BRD-41568
- UNSPSC: 55121737
CAD
$173.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Roll Form pipe markers eliminate the need for precise measurement of pipe diameter - simply cut to the size you need.
Features
- B-946 vinyl is printed with weather resistant inks and is suited for use in outdoor applications where weatherability is a key consideration.
- Designed for permanent applications in severe indoor or outdoor environments
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
Documentation & Downloads
Specifications
Key Specifications
| Applications | Pipe and Valve Marking |
|---|---|
| Brand Name | Brady® |
| Compatible Surface Types | General |
| Finish | Gloss |
| Pictogram Description | Arrow Symbol |
| Pre-Printed Areas on Label | Arrows |
| Printer and Label Applications | General Identification; Pipe Marker |
| Reflective Type | Non-Reflective |
| Text Legend | PROCESS WATER |
| Brady Material Number | B-946 |
| Label Properties | Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels |
| Resistance Properties | Abrasion-Resistant; Chemical-Resistant; Water-Resisitant |
| Average Outdoor Durability | 8 to 10 Years |
| Dimensions | 8 in W x 30 ft L |
| Dimensions 2 | 8 in W |
| Maximum Outside Pipe Diameter (in/ft/yd) | 2 in |
| Maximum Service Temperature °C | 82 °C |
| Minimum Application Temperature °C | -18 °C |
| Minimum Service Temperature °C | -40 °C |
| Overall Size | Fits Pipes 2in Dia. or smaller |
| Roll/Tape Length (in/ft/yd) | 30 ft |
| Thickness (in/ft/yd) | 0.004 in |
| Width (in/ft/yd) | 8 in |
| Arrow Direction | Directional |
|---|---|
| Color | White on Green |
| Enables Industry Compliance | ANSI/ASME A13.1-2007 |
| Language | English |
| Pipe Marker Mounting Style | Self-Adhesive |
| Primary Noun, Basic Function | Pipe Marker |
| Quantity per Roll | 65 |
| Self-Adhesive Pipe Marker Format | Roll Form, Continuous |
| Adhesive Type | Permanent Acrylic |
| Indoor or Outdoor Use | Outdoor Use |
| Material | Vinyl |
| SAP B-Number | B-946 |
| Character Height (in/ft/yd) | 0.75 in |
| Dimensions (Metric) | 9.14 m H |
| Height (mm/cm/m) | 9.14 m |
| Maximum Outside Pipe Diameter (mm/cm/m) | 50.8 mm |
| Maximum Service Temperature °F | 180 °F |
| Minimum Application Temperature °F | 0 °F |
| Minimum Service Temperature °F | -40 °F |
| Roll Width (in/ft/yd) | 8 in |
| Roll/Tape Size (in/ft/yd) | 8 in W x 30 ft L |
| Thickness (mm/cm/m) | 0.102 mm |
| Width (mm/cm/m) | 203.2 mm |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
