Hubbell

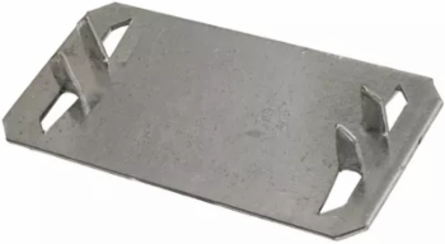

Hubbell 66 Protector plate. Meets requirements of CEC rule 12-616. (200-Pack)

Protector plate. Meets requirements of CEC rule 12-616. (200-Pack)
  • MPN: 66
  • UPC: 626463002919
  • PPN: HBL-66

Spec sheet

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$0.20/ EA

Description

Protector plate. Meets requirements of CEC rule 12-616. (200-Pack)

Features

  • When electrical cables (like NMD90/Loomex) or pipes are run through holes drilled in wood or metal studs, they are vulnerable to being punctured by drywall screws or finish nails. The Iberville 66 provides a hardened steel barrier that deflects these fasteners, preventing electrical shorts, fires, or water leaks.
  • This plate measures 3 inches by 1-1/2 inches. This size is designed to perfectly cover the width of a standard 2x4 stud where a hole has been drilled, ensuring the vulnerable area of the cable or pipe is fully shielded.
  • The Hubbell 66 features integrated pointed prongs (teeth) on the back. You do not need screws or nails to install it; you simply position the plate over the cable/pipe on the stud and hammer it into place. The prongs bite into the wood, holding the plate securely during the drywalling process.
  • It is manufactured from 16-gauge galvanized steel. This thickness is specifically engineered to resist penetration from high-speed drywall screw guns and hammers, providing the mechanical strength required by building codes.
  • While a staple for electricians, it is also widely used by plumbers to protect PEX or copper water lines. Any service passing through a structural member within 1-1/4 inches (32mm) of the edge of the stud requires this protection.

Specifications

Actual Depth
0.5 in
Material
Steel
Weight0.06 lb
ComplianceCSA Certified, CEC Rule 12-616 Compliant
