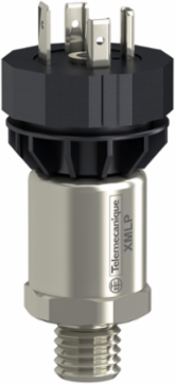

Telemecanique Sensors XMLPM60RC23F Electronic pressure sensors, Pressure sensors XM, transmitter -14,5...60 PSI, 4...20 mA, 1/4 18NPT male, FPM, DIN
- MPN: XMLPM60RC23F
- PPN: TES-XMLPM60RC23F
CAD
$205.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronic pressure sensors, Pressure sensors XM, transmitter -14,5...60 PSI, 4...20 mA, 1/4 18NPT male, FPM, DIN
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- pressure transmitter
- Type Of Output Signal
- analogue
- Range Of Product
- Telemecanique Pressure sensors XM
- Pressure Sensor Size
- -14.5-60 psi
- Electrical Circuit Type
- control circuit
- Type Of Packing
- individual
- Local Display
- without
- Current Consumption
- < 23 mA
Analogue Output Function4...20 mA, 2-wire
Controlled Fluidfresh water 0-125 °C) || air -15-125 °C) || gas -15-125 °C) || hydraulic oil -15-125 °C)
Electrical Connection1 male connector EN 175301-803-A (ex DIN43650) 3 pins
Quantity Per Setset of 1
Product Or Component Typeelectronic pressure sensors
[Us] Rated Supply Voltage12...24 V DC SELV 7-33 V)
Pressure Sensor NameXMLP
Fluid Connection Type1/4" - 18 NPT (male)
Complementary
- Accuracy
- 0.1 % of the measuring range
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Mechanical Durability
- 10000000 cycles
- Operating Position
- any position
- Measurement Accuracy
- +/- 0.5 % of the measuring range
- Drift Of The Sensitivity
- +/- 0.02 % of measuring range/°K
- Materials In Contact With Fluid
- stainless steel AISI 316L || fluorocarbon FPM || ceramic
- Destruction Pressure
- 350 psi
- Response Time On Output
- <= 2 ms 10...90 % of full scale
Diameter26 mm
Repeat Accuracy+/- 0.25 % of the measuring range
Drift Of The Zero Point+/- 0.02 % of measuring range/°K
Electromagnetic Compatibilitysusceptibility to electromagnetic fields EN/IEC 61000-4-3 10 V/m 80...1000 MHz || radiated RF fields EN/IEC 61000-4-6 10 V 0.15...80 MHz || electrostatic discharge immunity test EN/IEC 61000-4-2 8 kV air, 4 kV contact || 1.2/50 µs shock waves immunity test EN/IEC 61000-4-5 1 kV 42 Ohm || immunity to magnetic fields EN/IEC 61000-4-8 100 A/m 50 Hz || electrical fast transient/burst immunity test EN/IEC 61000-4-4 4 kV
Protection Typereverse polarity || load short-circuit
Maximum Permissible Accidental Pressure260 psi
Length53 mm
Net Weight0.095 kg
Pressure Setting Range-14.5-60 psi
Environment
- Product Certifications
- cULus || RCM || EAC || CE
- Ambient Air Temperature For Storage
- -50-100 °C
- Shock Resistance
- 100 gn 11 ms EN/IEC 60068-2-27
- Ip Degree Of Protection
- IP65 EN/IEC 60529
Ambient Air Temperature For Operation-30-85 °C
StandardsEN/IEC 61326-2-3 || NSF ANSI 61
Vibration Resistance20 gn 10-2000 Hz) EN/IEC 60068-2-6
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511013EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
