Weidmuller

Weidmuller 1173810000 PRV 4 SW 35X15 RT

  • MPN: 1173810000
  • PPN: WDM-1173810000

CAD

$18.85

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

P-series, Patch distributor, Rated cross-section: 1.5 mm², Number of levels: 4, Number of connections: 16, Colour: black, Colour of operational elements: red, TS 35 x 15

Documentation & Downloads

Specifications

Approvals

ApprovalsCE, CSA, cURus, EAC
UL File Number SearchE60693
ROHSConform

Dimensions And Weights

Width9.2 mm
Height70 mm
Depth54.5 mm
Net weight21.91 g
Width (inches)0.362 inch
Height (inches)2.756 inch
Depth (inches)2.146 inch

Csa Rating Data

Certificate No. (CSA)200039-2406089
Current size D (CSA)10 A
Voltage size D (CSA)300 V
Wire cross section min. (CSA)26 AWG
Current size B (CSA)10 A
Voltage size B (CSA)300 V
Wire cross section max. (CSA)16 AWG

Additional Technical Data

Type of mountingSnap-on

Material Data

MaterialPolycarbonate
Colourblack
UL 94 flammability ratingV-0
Material of operational elementsPBT
Colour of operational elementsred

Safety Note

Safety noticeSafety Information

Classifications

ETIM 6.0EC000897
eClass 9.027-14-11-20
eClass 10.027-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20

System Specifications

VersionPUSH IN connection, One end without connector
Number of levels4
Number of potentials per tier1
PE connectionNo
End cover plate requiredYes
Number of clamping points per level4
Levels cross-connected internallyNo
RailTS 35 x 15

Temperatures

Storage temperature, max.70 °C
Storage temperature-25 °C...70 °C
Continuous operating temp., min.-50 °C
Temperature range, installation, max.40 °C
Storage temperature, min.-25 °C
Temperature range, installation, min.-10 °C
Continuous operating temp., max.130 °C

Rating Data

Rated cross-section1.5 mm²
Rated current10 A
StandardsIEC 60947-7-1, DIN EN 60079
Power loss in accordance with IEC 60947-7-x0.56 W
Pollution severity3
Rated voltage250 V
Current at maximum wires13 A
Volume resistance according to IEC 60947-7-x1.83 mΩ
Rated impulse withstand voltage4 kV
Surge voltage categoryIII

Conductors For Clamping (Rated Connection)

Blade size0.6 x 3.5 mm
Clamping range, min.0.13 mm²
Connection cross-section, stranded, min.0.5 mm²
Number of connections16
Type of connectionPUSH IN
Wire connection cross section AWG, min.AWG 24
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.1.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Clamping range, max.1.5 mm²
Connection cross-section, stranded, max.1.5 mm²
Connection directionInclined / angled
Stripping length10 mm
Wire connection cross section AWG, max.AWG 16
Wire connection cross section, finely stranded, max.1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Wire connection cross-section, solid core, max.1.5 mm²

Ul Rating Data

Certificate No. (cURus)E60693
Current size D (cURus)10 A
Voltage size D (cURus)300 V
Wire cross section min. (cURus)26 AWG
Current size B (cURus)10 A
Voltage size B (cURus)300 V
Wire cross section max. (cURus)16 AWG

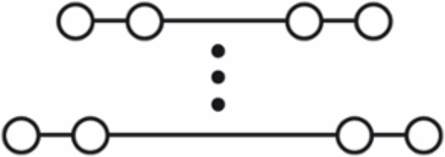

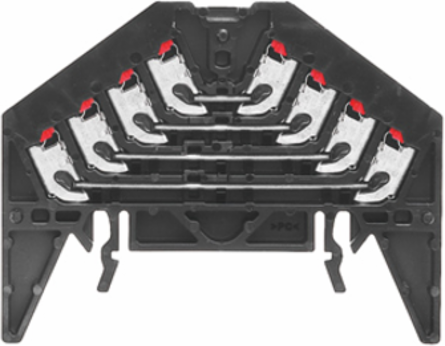

PRV 4 SW 35X15 RT
PRV 4 SW 35X15 RT
