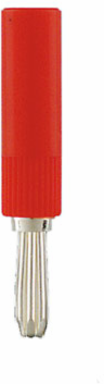

Weidmuller 0299600000 PS 4 F.STB 4
- MPN: 0299600000
- PPN: WDM-0299600000
CAD
$6.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Accessories, Test plug
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 7.7 mm |
|---|---|
| Height | 7.7 mm |
| Depth | 42 mm |
| Net weight | 3.16 g |
| Width (inches) | 0.303 inch |
|---|---|
| Height (inches) | 0.303 inch |
| Depth (inches) | 1.654 inch |
Additional Technical Data
| Installation advice | Direct mounting |
|---|---|
| Type of mounting | Plugged |
| Type of fixing | Plugged |
|---|
Material Data
| Material | Polyamide 66 |
|---|---|
| UL 94 flammability rating | V-2 |
| Colour | red |
|---|
Classifications
| ETIM 6.0 | EC002555 |
|---|---|
| eClass 9.0 | 27-14-11-48 |
| eClass 10.0 | 27-14-11-48 |
| ETIM 7.0 | EC002555 |
|---|---|
| eClass 9.1 | 27-14-11-48 |
| UNSPSC | 30-21-18-01 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Specifications
| Version | Test plug |
|---|
Temperatures
| Operating temperature range, max. | 100 °C |
|---|---|
| Continuous operating temp., max. | 100 °C |
| Continuous operating temp., min. | -50 °C |
|---|
Conductors For Clamping (Rated Connection)
| Type of connection | Plug-in connection |
|---|
