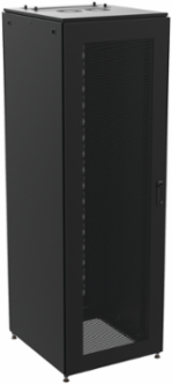

Nvent Hoffman PS1C1269B ProLine S1 Cabinet, 1200x600x900mm, Black, Steel
Nvent Hoffman PS1C1269B ProLine S1 Cabinet, 1200x600x900mm, Black, Steel
- MPN: PS1C1269B
- UPC: 783510367350
- PPN: HOF-PS1C1269B
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2174.31/ EA
Description
Proline S1 Cabinets are an economical networking/server cabinet suited for variety of applications. This ProLine S1 Cabinet, PS1C1269B item measures 1200x600x900mm with a material of Steel colored Black.
Features
- All doors have toolless hinges that allow the doors to easily be removed or reversed in the field
- All doors have ergonomic opening, keylocking handles
- Easy-to-remove side panels with keylocking latch
- Front and rear doors are fully perforated to allow for maximum air flow
- Top accepts additional cooling fans (2 x 6-in. fans) with integral finger guard prefabricated in place
- Top has sliding gland plate to accommodate large cable egress capacity
- Combination foot and adjustable leveler in each cabinet corner
- Open base for easy cable entrance
- Rack angles are fully adjustable front to rear, easily converting between tapped or square configurations
- Rack angles able to mount off-centered on 700 and 800mm wide models
- Rack angles able to configure at 23” spacing on 700 and 800mm wide models
- Perforated doors meet or exceed manufactures open space/air flow ventilation requirements
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 606
- Protection Rating
- NEMA Type 1
- Color Code
- RAL 9005
- Cabinet Type
- Communication
- Rack Width
- 19
- Sub Brand
- ProLine
- Width
- 23.87
- Thickness
- 16 gauge
- Finish
- Powder Coated
- Mounting
- Floor Stand
- Cable Entry
- Yes
Height (H)1,213
Depth (D)898
Product FamilyProLine S1
Thickness (T)1.52
Rack Units24
Weight275
Height47.74 in
Depth35.36 in
MaterialMild Steel
ColorJet Black RAL 9005
FrameYes
NEMA RatingNEMA Type 1
