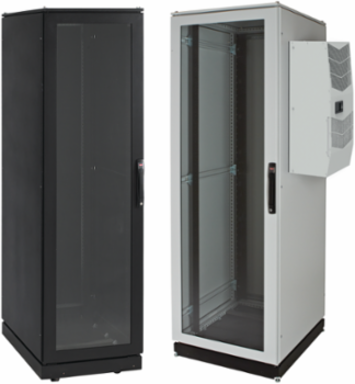

Nvent Hoffman PSC20610B12 ProLine V/D Server Cabinet Type 12, 2000x600x1000mm, Black, Steel
Nvent Hoffman PSC20610B12 ProLine V/D Server Cabinet Type 12, 2000x600x1000mm, Black, Steel
- MPN: PSC20610B12
- UPC: 783510149277
- PPN: HOF-PSC20610B12
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Proline Voice/Data cabinets are used for housing either A/V or server equipment in wet/hot environments. This ProLine V/D Server Cabinet Type 12, PSC20610B12 item measures 2000x600x1000mm with a material of Steel colored Black.
Features
- Fully gasketed to keep contaminants away from equipment, reducing maintenance costs
- Three-point locking handles on all doors provide easy but controlled access; two keys included
- Rack angles are infinitely adjustable from front to rear for positioning flexibility
- Mobile base provides easy placement of cabinet
- Levelers and anti-tip bracket secure cabinet to the floor
- AC package has cutout for easy in-the-field installation of SpectraCool G-Series Air Conditioner (shipped separately)
- Mobile base includes casters, levelers and gland plate
- Gland plate allows easy routing of cable
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 608
- Protection Rating
- NEMA Type 12
- Thickness (T)
- 1.9
- Rack Units
- 42
- Product Family
- ProLine
- Sub Brand
- ProLine
- Width
- 23.94 in
- Material
- Mild Steel
- Color
- Black
Height (H)2,085
Depth (D)999
Color CodeRAL 9005
Hole TypeSquare
Cabinet Package TypeServer, Standard
Weight448
Height82.1 in
Depth39.34 in
FinishSteel/Black
NEMA Rating12 Indoor, dust-resistant
Downloads
