Nvent Hoffman PSCHCA20612BNS ProLine FloTek HCA Server Cabinet no Sides, 2000x600x1200mm, Black, Steel
Nvent Hoffman PSCHCA20612BNS ProLine FloTek HCA Server Cabinet no Sides, 2000x600x1200mm, Black, Steel
- MPN: PSCHCA20612BNS
- UPC: 783510156022
- PPN: HOF-PSCHCA20612BNS
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description

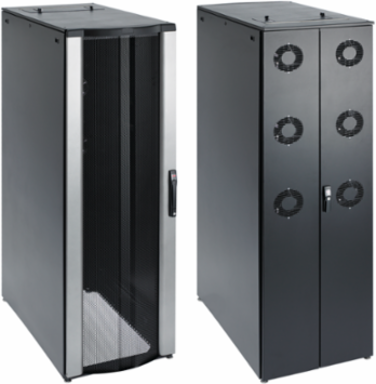

ProLine FloTek HCA Server Cabinets promote airflow through cabinet in hot or cold aisle application. This ProLine FloTek HCA Server Cabinet no Sides, PSCHCA20612BNS item measures 2000x600x1200mm with a material of Steel colored Black.
Features
- Fully perforated front door offers maximum airflow from cold aisle and conforms to server manufacturer open space requirements
- Rigid front door made of aluminum extrusions and formed perforated steel offers highly attractive appearance and durability
- Six 6-inch fans with integral finger guards in the rear doors pull cold-aisle air through cabinet and exhaust it to hot aisle
- Fans on each door can be independently powered to provide redundant cooling
- Solid top helps direct airflow across equipment
- Models without sides fit together quickly for easy installation in ganged applications
- Three-point locking pushbutton swing handle on front door provides easy but controlled access; two keys included
- Rear doors are split for easy access and include 3-point, low-profile, locking swing handle
- Two sets of 19-inch square-hole rack angles support both front and rear of equipment
- Rack angles are infinitely adjustable from front to rear for positioning flexibility
- Large gland plate in top allows easy routing of cable, pre-terminated cables and patch panels
- Open bottom with integral bolt-down brackets
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 599
- Product Family
- ProLine
- Thickness (T)
- 1.52
- Side Covers Included
- No
- Sub Brand
- ProLine
- Finish
- Black
Height (H)1,991
Depth (D)1,199
Color CodeRAL 9005
Rack Units42
Weight269
MaterialSteel
ColorBlack
Downloads
