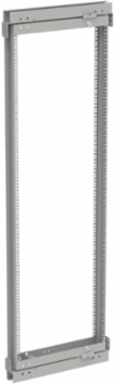

nVent Hoffman PSF168 Heavy-Duty Swing-Out Rack Frame, Fits 1600 x 800mm, Steel, 30 Rack Units
- MPN: PSF168
- UPC: 783510997502
- PPN: HOF-PSF168
- UNSPSC: 39121334
CAD
$1529.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Heavy-Duty Swing-Out Rack Frame, Fits 1600 x 800mm, Steel, 30 Rack Units
Features
- Swing-out mounting supports mount to inside of frame at any vertical location; flexibility to select any model size equal to or shorter in height (i.e. use of 1400mm rack frame in 2000mm high enclosure)
- Spring-loaded pivot post makes installation easy
- Rack Frames are available for 600-, 700- and 800-mm wide enclosure frames
- Swing-Out Rack Frames can also be installed in right, left or both bays of 1200-mm wide frames using center uprights
- Furnished with hinges, two quarter-turn latches and mounting hardware
- Complies with ANSI/EIA RS-310-D rack-mounting standards
- Maximum equipment load is 300 lb. (136 kg)
- Mounting holes accommodate either English or metric cage nuts, which are ordered separately
- Swing-Out Rack Frame assemblies are supplied with mounting supports
- Hinges that provide 170-degree rotation are optional
- RAL 7035 textured light-gray polyester powder paint
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Fits Frame Width | 800 |
| Weight | 46 |
| Finish | Powder Coated |
| Works With | NEMA |
| Material | Steel |
| Color | LtGray |
| Product Family | ProLine |
|---|---|
| Rack Units | 30 |
| Color Code | RAL 7035 |
| Thickness (T) | 12 |
| Sub Brand | ProLine |
| Size | fits 1600+ x 800mm |
