Federal Signal MPEX Pull Station, Fire Alarm, Explosion-Proof, UL and ULC Fire CID1, Red
Federal Signal MPEX Pull Station, Fire Alarm, Explosion-Proof, UL and ULC Fire CID1, Red
- MPN: MPEX
- UPC: 782979200758
- PPN: FDS-MPEX
- UNSPSC: 46191505
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1788.93/ EA
Description

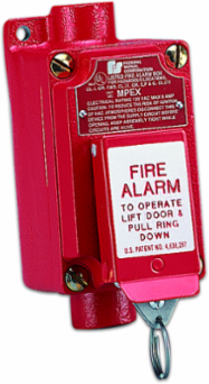

MPEX Fire Alarm Pull Station for Hazardous Locations. This Federal Signal fire alarm pull station is explosion-proof, designed for hazardous locations where flammable gases, vapors, combustible dusts or easily ignitable fibers are present. The pull station's unique swing-up front cover exposes a pull-down ring which activates the alarm; this two-step process prevents accidental activation. MPEX fire pull station is reset by depressing the shaft and returning the plate to its original position. The pull station enclosure is made of copper-free cast aluminum alloy.
Features
- Contacts on the unit are rated 120VAC, 60Hz at 6 amps continuous
- Highly visible red enclosure
- Lift cover and pull down ring to activate
- 2 - 3/4" conduit entry
- Explosion-Proof pull station
- UL and cUL Listed for Class I, Division 1, Groups C and D; Class II, Division 1, Groups E, F and G; Class III
- NEMA 7 for Groups C and D and NEMA 9 for Groups E, F and G
- UL Fire Listed and ULC Fire Listed
Specifications
Specifications
- Country of Origin
- United States
- Certification Listing
- CSFM, UL, cUL, ULC Fire
- Label Text
- Fire Alarm
- Lift Flap
- Yes
- Sounder
- No
- Depth
- 6.42 in, 16.3068 cm
- Width
- 3.0 in, 7.62 cm
Body ColorRed
AvailabilityIn Stock - Ships in 2 Bus Days
LED IlluminatedNo
Operating Temp.-13˚ to +104˚F (-25˚ to +40˚C)
Initiating Devices Model DescriptionMPEX
Height6.42 in, 16.3068 cm
