Greenlee GX10-C GX10 10k Tugger™ with Chain Mount
- MPN: GX10-C
- UPC: 783310003434
- PPN: GRN-GX10-C
- UNSPSC: 72141122
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

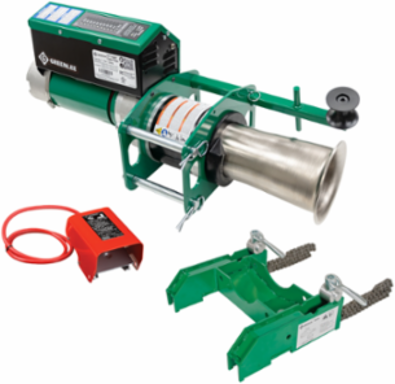

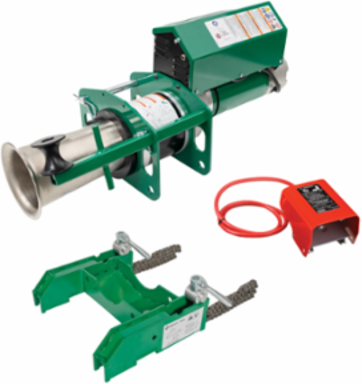

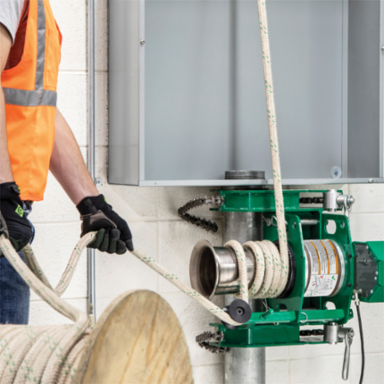

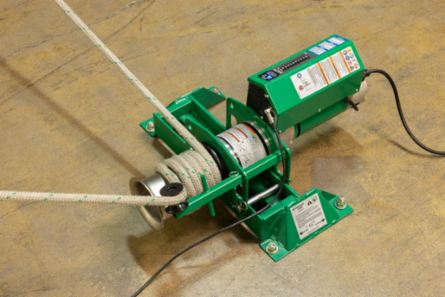

GX10 10k Tugger™ with Chain Mount
Features
- Faster pulls up to 10,000 lbs at a high continuous pulling force
- Multi-purpose heavy-duty foot switch allows hands-free speed and operation control
- Right angle sheave keeps operators safely out of the direct line of pulls
- Adaptable mount options for built-in versatility
- GX10 is compatible with Greenlee UT10 mounts, foot pedals and accessories
- Multi-purpose footswitch controls speed and start/stop operation, keeping the operator out of the line of fire
- Sets up in less than 2 minutes and can be used in every pulling situation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Length
- 48 IN / 1219.2 MM
- Weight
- 158 LB / 71.65533 KG
- Min Operating Temperature
- -5 F / -20.55556 C
- Color
- Green, Black
- Material
- Steel
- Number of Handles
- 1
- Capacity Min
- 0 MM
- Cord Length
- 8.17 FT / 2.49022 MT
- Kit Includes
- GX10, G-294, 02846
Width40 IN / 1016 MM
Height17 IN / 431.8 MM
Product Warranty12
Max Operating Temperature95 F / 35 C
ShapeRectangle
PowerAC
Handle TypeNormal
Capacity Max0 MM
Load10,000 lbs. peak pulling force with a continuous pulling rating of 6,500 lbs
Accessories Included02846 Chain Mount
Regulations
- SDS Required
- No
- CA Prop 65 Reproductive Harm
- Yes
- RoHS Regulations
- Yes
CA Prop 65 CancerYes
CA Prop 65 Chemcial NamesLEAD
REACH CompliantNo
Motor Information
- Type
- DC Brushed Permanent Magnet
- Wattage
- 2280
- Horsepower
- 2
- Torque
- 15600 INP / 1762 NTM
Voltage120 VLT
Amperage19
RPM18
Battery Information
- Included
- No
RequiredNo
