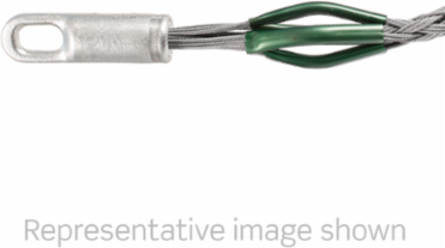

Leviton L8621-100 Pulling Grip, 0.25-0.50 Inch Cable Diameter, 7000 lbs Break Load, Galvanized Steel
- MPN: L8621-100
- UPC: 078477579381
- PPN: LEV-L8621-100
CAD
$427.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pulling, Rotating Eye, Multi Weave, Standard Length, Galvanized Steel, Dark Green, 0.25"-0.50" Cable Diameter Range - Breakload is 7000 LBS
Features
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Pulling grips are reusable devices for pulling bare conductors, insulated wires, synthetic rope, wire rope, and fiber optic cable
- All pulling grip designs are fully tested to meet published break ratings without slipping
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United Kingdom |
|---|
| RoHS Compliant | True |
|---|
Material Specifications
| Mesh Material | Galvanized |
|---|
Mechanical Specifications
| Approx. Break Strength | 7000LBS |
|---|---|
| Cable Range | 0.25"-0.50" |
| Eye Type | Rotating Barrel Eye |
| Mesh Style | Closed |
| Weave | Multi Weave |
| Bale Length | 6.3 in (160 mm) |
|---|---|
| Duty | Heavy |
| Mesh Length | 28.5" |
| Standards and Certifications | UL |
| Workload Safety Factor (lbs) | 1,400 lbs @ 5:1 (635 kgs @ 5:1) |
Product Features
| Device Type | Pulling Grip |
|---|
Warranty
| Warranty | 1-Year Limited |
|---|
