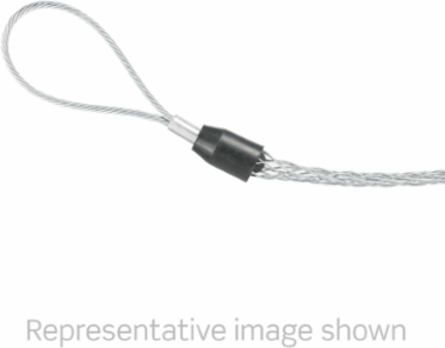

Leviton L8504-100 Pulling Grip 0.75-0.99 Inch Galvanized Steel, Break Strength 2800 lb
- MPN: L8504-100
- UPC: 078477213520
- PPN: LEV-L8504-100
CAD
$116.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pulling, Flexible Eye, Junior Pulling Grip, Galvanized Steel, 0.75"-0.99" Cable Diameter Range - Breakload is 2800 LBS
Features
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Pulling grips are reusable devices for pulling bare conductors, insulated wires, synthetic rope, wire rope, and fiber optic cable
- All pulling grip designs are fully tested to meet published break ratings without slipping
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
RoHS CompliantTrue
Material Specifications
- Mesh Material
- Galvanized
Mechanical Specifications
- Approx. Break Strength
- 2,800lb
- Cable Range
- 0.75"-0.99"
- Eye Type
- Flex Eye
- Mesh Style
- Closed
- Weave
- Single Weave
Bale Length4 in (101.6 mm)
DutyLight
Mesh Length12.0"
Standards and CertificationsUL
Workload Safety Factor (lbs)933 lbs @ 3:1 (423 kgs @ 3:1)
Product Features
- Device Type
- Pulling Grip
Warranty
- Warranty
- 1-Year Limited
