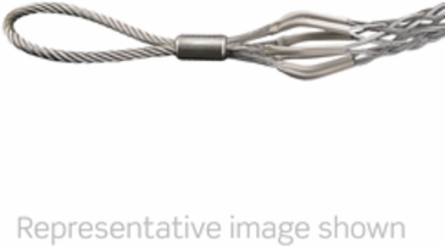

Leviton L8519-100 Pulling Grip, 2.50-3.50"
- MPN: L8519-100
- UPC: 078477214336
- PPN: LEV-L8519-100
CAD
$234.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pulling, Flexible Eye, Double Weave, Galvanized Steel, 2.50"-3.50" Cable Diameter Range - Breakload is 13439 LBS
Features
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Pulling grips are reusable devices for pulling bare conductors, insulated wires, synthetic rope, wire rope, and fiber optic cable
- All pulling grip designs are fully tested to meet published break ratings without slipping
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United Kingdom |
|---|
| RoHS Compliant | True |
|---|
Material Specifications
| Mesh Material | Galvanized |
|---|
Mechanical Specifications
| Approx. Break Strength | 13439LBS |
|---|---|
| Cable Range | 2.50"-3.50" |
| Eye Type | Single |
| Mesh Style | Closed |
| Workload Safety Factor (lbs) | 4480 lbs @ 3:1 (2032 kgs @ 3:1) |
| Bale Length | 4 in (101.6 mm) |
|---|---|
| Duty | Light |
| Mesh Length | 20.0" |
| Weave | Double Weave |
Product Features
| Device Type | Pulling Grip |
|---|
Warranty
| Warranty | 1-Year Limited |
|---|
