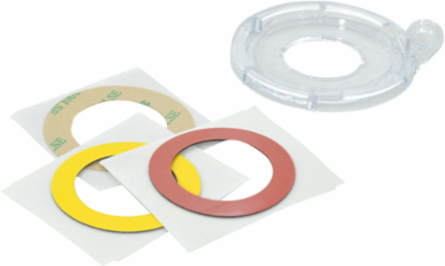

Brady 130824 Push Button and E-Stop Lockout Device Attachment - Safety Cover Bases, Large, 5/Pack
- MPN: 130824
- UPC: 754473810993
- PPN: BRD-130824
- UNSPSC: 39121908
CAD
$45.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

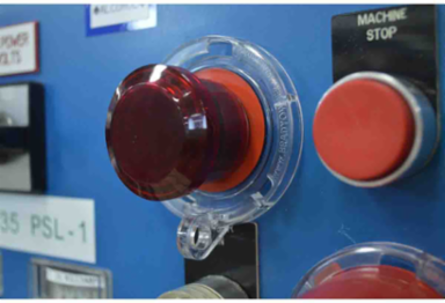

One-time installation of a low profile base enables fast and convenient lockout of ON/OFF and engaged emergency stop controls at the point of need (covers sold separately).
Features
- Personnel can apply portable safety covers (sold separately) to any installed base
- Item includes five extra bases, each of which is supplied with one yellow and one red label
- Use these extra bases to supplement the safety covers from Brady®
- Safety covers and bases quickly and efficiently secure facility production and operating equipment at the point of need
Specifications
Key Specifications
- Brand Name
- Brady®
- Button Type
- IEC; NEMA
- Country
- Global
- Includes
- (1) Yellow Label; (1) Adhesive Backing; (1) Base; (1) Red Label
- Primary Noun, Basic Function
- Lockout Device
- Total Qty per Pack
- 5 Piece(s) / Pack
- Brady Material Number
- LOTO72
- Lockout Material
- Polycarbonate
- Button Size
- 30.50 mm
- Depth (mm/cm/m)
- 73.66 mm
- Dimensions
- 0.3 in H x 2.9 in W x 2.9 in D
- Height (in/ft/yd)
- 0.3 in
- Maximum Service Temperature °C
- 80 °C
- Maximum Shackle Diameter (mm/cm/m)
- 8.13 mm
- Sign Size-General
- 0.3 in x 2.9 in
- Size - Width (mm)
- 73.66 mm
- Width (mm/cm/m)
- 73.66 mm
BrandedYes
ColorClear
Enables Industry ComplianceOSHA 1910.147
Maximum Number of Padlocks1
Risk TypeElectrical Risk; Mechanical Risk
Adhesive (Y/N)No
ConductiveNo
MaterialPolycarbonate
Depth (in/ft/yd)2.9 in
Diameter (mm/cm/m)73.00 mm
Dimensions (Metric)73.66 mm W x 73.66 mm H x 73.00 mm Dia x 73.66 mm D
Height (mm/cm/m)73.66 mm
Maximum Shackle Diameter (in/ft/yd)0.32 in
Minimum Service Temperature °C-20 °C
Size - W x H x D (mm)73.66 x 73.66 x 73.66
Width (in/ft/yd)2.9 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
