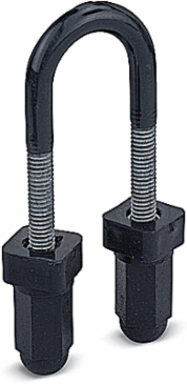

Ocal UB21/2-G PVC Coated U-Bolt
- MPN: UB21/2-G
- UPC: 704508412425
- PPN: T-B-UB21/2-G
CAD
$92.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PVC Coated U-Bolt, Pipe Size 2-1/2 Inch/63 Metric, A Dimension 3.47 Inch/88.11 Millimeters, Gray
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 31161616 U bolts |
|---|---|
| Brand Name | Ocal |
| Special Features | Nominal .040 Inch (40 mil) PVC Coating for Corrosion Protection |
| Material | Malleable Iron |
| Size | 2-1/2 Inch/63mm |
| Number of Nuts | 2 |
| IGCC | 2803 U bolts |
|---|---|
| Type | PVC Coated U-Bolt |
| Application | Support and Attach Conduit Runs to Structural Beams |
| Finish | PVC Coated Gray |
| Diameter | 3.47 in ; 88.11 mm |
| Nut Type | Square |
European Specifications (ETIM)
| ETIM | EC000464 Fixing clamp |
|---|---|
| Connection type construction part | Other |
| Hinging | N |
| Surface protection | Coated |
| Type of fastening | Screwing |
|---|---|
| Tube/cable diameter | 63-63mm |
| Material | Other |
Packaging
| Inner Dimensions (inches) | xx |
|---|---|
| Outer Dimensions (inches) | 13.125x7.125x7.375 |
| Outer Quantity | 40 |
|---|---|
| Weight Uom | 0.38 lbs. Each |
