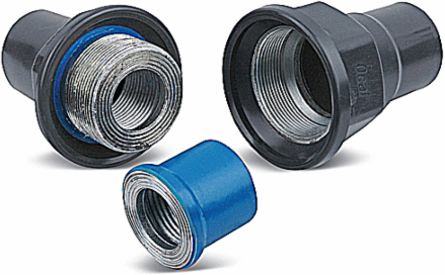

Ocal UNF105-G Female Union
- MPN: UNF105-G
- UPC: 704508412869
- PPN: T-B-UNF105-G
CAD
$130.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

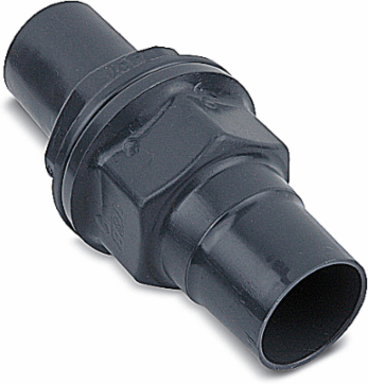

PVC Coated Explosion and Dust-Ignition Proof UNF Female Union, Pipe Size 1/2 Inch/16 Metric, 3 Piece, for Hazardous and Non-hazardous Locations, Overall Length 1.88 Inch/47.75 Millimeters, Overall Diameter 1.50 Inch/38.10 Millimeters, Electrogalvanized Steel, Gray
Features
- Coated with a nominal .002 inch (2 mil) blue urethane on the interior, before PVC Coating is applied.
- A minimum .040 inch (40 mil) PVC Coating is bonded to the exterior.
- Pressure sealing sleeves to protect the connection.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39131707 Electrical conduit coupling
- Brand Name
- Ocal
- Special Features
- Compact Design Which Permits Assembly with a Minimum of Clearance to Other Adjacent Conduit and/or Equipment
- Standard
- UL 1203, CSA
- Outside Diameter
- 1.50 Inch/38.10mm
- Material
- Steel
IGCC5548 Electrical conduit coupling
TypeFemale Union
ApplicationTo Connect Conduit to Conduit, or to Provide a Means for Future Modification of the Conduit System
Trade Size1/2 Inch/ 16mm
Length1.88 in ; 47.75 mm
ColorGray
European Specifications (ETIM)
- ETIM
- EC000939 Coupler for installation tubes
- Material quality
- Steel
- Model
- Thread
- Two piece
- N
MaterialMetal
Surface protectionOther
For nominal tube diameter16mm
With inspection opening and coverN
Packaging
- Inner Dimensions (inches)
- xx
- Outer Dimensions (inches)
- 13.7x8.3x8.6
Outer Quantity50
Weight Uom0.48 lbs. Each
