Telemecanique Sensors XZCP57V12L5 M12 12 pin straight female connector 5 m safety light curtain integrated muting
- MPN: XZCP57V12L5
- PPN: TES-XZCP57V12L5
- UNSPSC: 39122221
CAD
$101.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

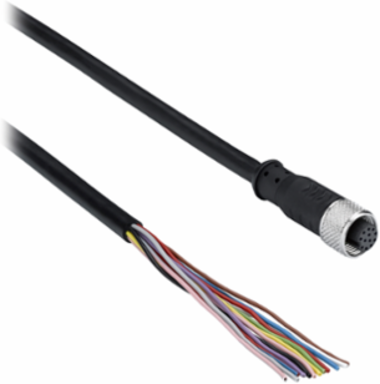

This XZ Connection Cable has a straight 12-pin M12 connector with a 5 meter PVC cable connection with bare end flying leads. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It is compatible with XUSL4M safety light curtains with integrated muting receiver. It is designed to be used in static condition at a temperature from -30°C to +80°C.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- general purpose
- Accessory / Separate Part Category
- cabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors
Complementary
- Collar Material
- metal
- Cable Outer Diameter
- 6.5 mm
- Wire Insulation Material
- PVC
- Cable Connector Fixing
- screw-on
- Line Rated Current
- 1.5 A
- Status Led
- without
- Contact Resistance
- 10 mOhm
Electrical Connectionstraight female connector M12, 12 pins
Minimum Insulating Resistance100 MOhm
[Ue] Rated Operational Voltage30 V DC
Cable Length5 m
Cable Composition12 x 0.25 mm²
Net Weight0.35 kg
Environment
- Ambient Air Temperature For Operation
- -30-80 °C static
- Ip Degree Of Protection
- IP67
Ambient Air Temperature For Storage-30-80 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI1406015EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption InformationYes
Environmental DisclosureENVPEP1406015EN
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
