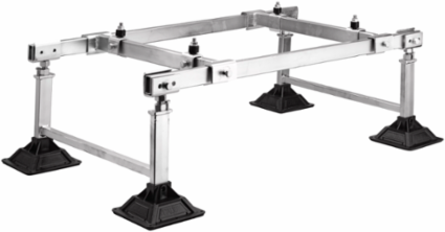

nVent Caddy PEKLD4 Pyramid Light-Duty Equipment Support Kit, 4 Post Base
- MPN: PEKLD4
- UPC: 784805073567
- PPN: CAD-PEKLD4
- UNSPSC: 30191609
CAD
$636.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

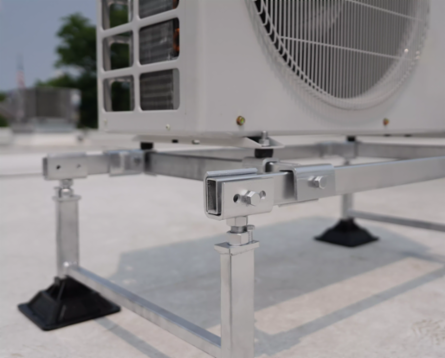

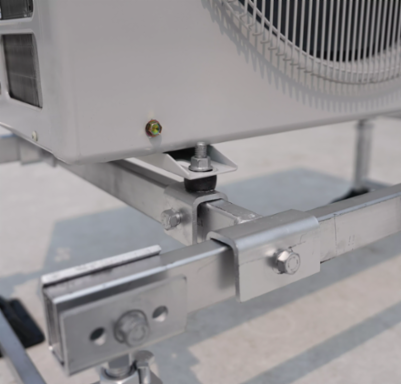

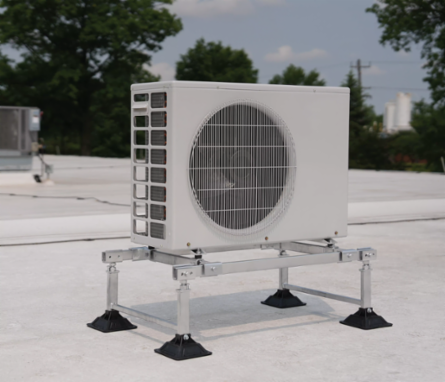

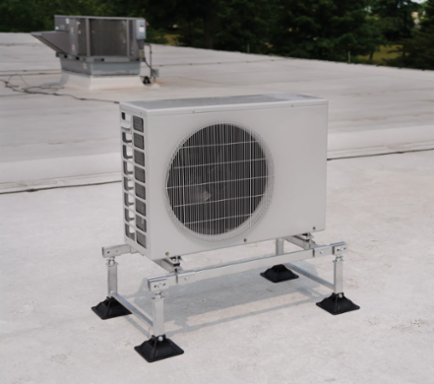

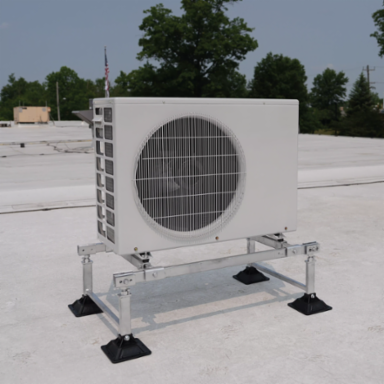

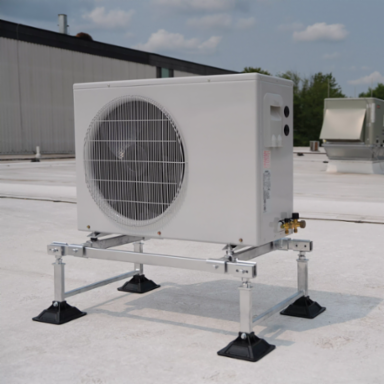

Includes all post bases, hardware and framing needed for an out of the box solution to construct a 38.2" light duty equipment support. Assembles and adjusts to size and height in minutes. Integral foam pad provides gentle interface.
Features
- System takes 80% less time to install compared to standard options on the market
- Easily adjusts from 12 -18 in (305 -457 mm), reducing the need for multiple SKUs
- Increased adjustability enables flexibility to move bars, sliding the kit as needed
- Extension Kit allows for pre-assembly and endless gang-ability of units linked together
- Evenly distributes load and avoids damaging roof membrane with nVent CADDY PEK-style foam bottom feet
- Product load rating can handle wide range of equipment BTU outputs/sizes
- Hot dip galvanized construction and hardware provide superior corrosion resistance in demanding environments
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Finish
- Hot-Dip Galvanized
- Height (H)
- 305
- Post Base (A)
- 152 mm x 4 pc
- Cross Bar Assembly (C)
- 521 mm x 2 pc
- Surface Area
- 0.092
- Static Load (F)
- 400
- Ultimate Static Load (F)
- 5,337
MaterialSteel
Temperature-34.4
Length (L)41.4
Square Tube (B)970.28 mm x 2 pc
Width (W)660
Unit Weight14.6
Static Load1,779
Static Load Safety Factor3:1
