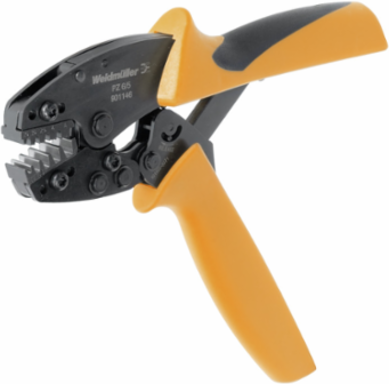

Weidmuller 9011460000 PZ 6/5
- MPN: 9011460000
- PPN: WDM-9011460000
CAD
$327.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

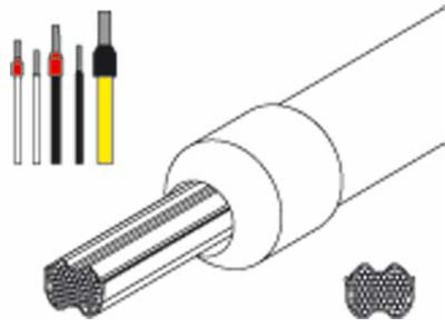

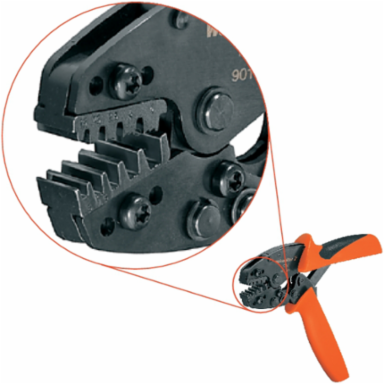

Pressing tool, Crimping tool for wire-end ferrules, 0.25mm², 6mm², Trapezoidal indentation crimp
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
Dimensions And Weights
| Width | 200 mm |
|---|---|
| Weight | 423 g |
| Width (inches) | 7.874 inch |
|---|---|
| Net weight | 459 g |
Classifications
| ETIM 6.0 | EC000168 |
|---|---|
| eClass 9.0 | 21-04-38-11 |
| eClass 10.0 | 21-04-38-11 |
| ETIM 7.0 | EC000168 |
|---|---|
| eClass 9.1 | 21-04-38-11 |
| UNSPSC | 31-16-31-02 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Technical Data
| Version | Mechanical, without interchangeable inserts |
|---|
Tool Data Crimping
| Crimping profile 1, min. | 0.25 mm² |
|---|---|
| Wire end ferrules cross-section, min. | 0.25 mm² |
| Wire end ferrules cross-section, max. | 6 mm² |
| Crimping profile 2, max. | 1.5 mm² |
| Crimping profile 4, min. | 4 mm² |
| Crimping type/profile | Trapezoidal indentation crimp |
|---|---|
| Crimping profile 1, max. | 0.5 mm² |
| Crimping profile 2, min. | 0.75 mm² |
| Crimping profile 3, min. | 2.5 mm² |
| Crimping profile 5 | 6 mm² |
Description Of Contact
| Type of contact | Wire-end ferrules with/without plastic collars |
|---|---|
| Crimping range, max. | 6 mm² |
| Conductor cross-section, min. AWG | AWG 24 |
| Crimping range, min. | 0.25 mm² |
|---|---|
| Conductor cross-section, max. AWG | AWG 10 |
