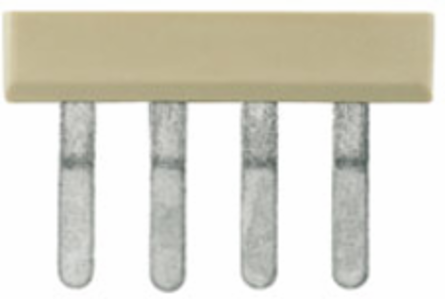

Weidmuller 0482900000 QB 4 WI RA6 IS
- MPN: 0482900000
- PPN: WDM-0482900000
CAD
$1.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SAK Series, Cross-connector, for cross-connection link, Number of poles: 4
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 3 mm
- Height
- 28 mm
- Depth
- 19 mm
- Net weight
- 1.65 g
Width (inches)0.118 inch
Height (inches)1.102 inch
Depth (inches)0.748 inch
Dimensions
- Pitch in mm (P)
- 6 mm
Additional Technical Data
- Explosion-tested version
- No
- Type of fixing
- when screwed in
Installation adviceDirect mounting
Material Data
- Material
- PA 66
- UL 94 flammability rating
- V-2
Colourgrey
Classifications
- ETIM 6.0
- EC000489
- eClass 9.0
- 27-14-11-40
- eClass 10.0
- 27-14-11-40
ETIM 7.0EC000489
eClass 9.127-14-11-40
UNSPSC30-21-18-01
System Specifications
- Version
- for cross-connection link
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 100 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
