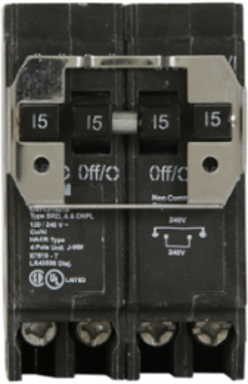

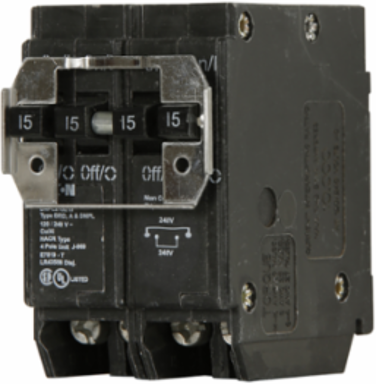

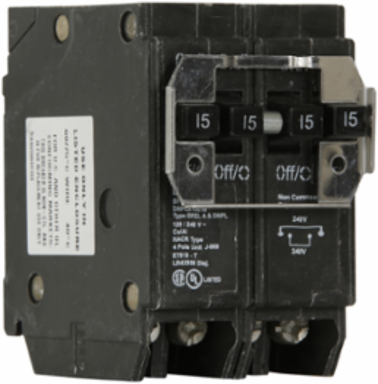

B-Line DNPL152015 CPM/CPL Plug-In Circuit Breakers
- MPN: DNPL152015
- UPC: 622588019276
- PPN: CUT-DNPL152015
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CPM/CPL Plug-In Circuit Breakers
Documentation & Downloads
Specifications
Additional
| Voltage | 120/240 V |
|---|---|
| Interrupting Capacity | 10 kAIC at 120/240 V |
| Wire Size Range | #14 - 4 AWG (Cu/Al 606C or 756C), up to #4 - 2/0 AWG for higher amperage models |
| Weight | .8 lb |
| Height | 2 in |
| Material | Silver tungsten alloy contacts, Steel frame |
| Compliance | CSA Listed, UL Listed, HACR Approved |
| Amperage Rating | (2) 15A, (1) 20A |
|---|---|
| Number of Poles | 1, 2, 3 |
| Pole Width | 1 in per pole |
| Length | 3 in |
| Width | 3 in |
| Load Side Screw Type | Robertson/slot |
| Ground Fault Protection Sensitivity | 4-6 mA (standard), 10 mA, 30 mA variants |
