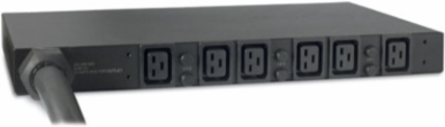

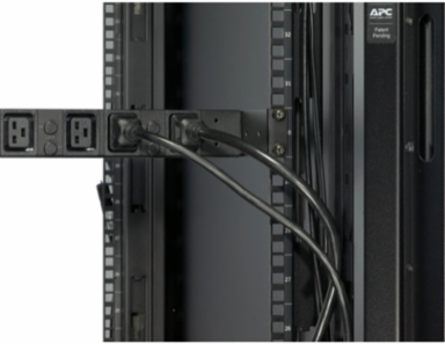

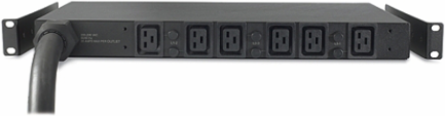

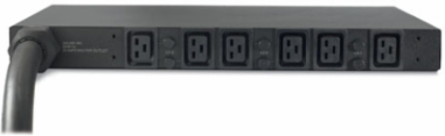

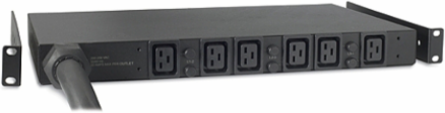

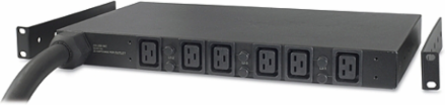

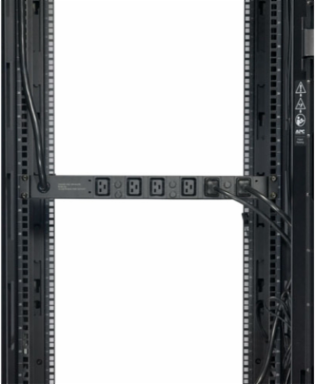

APC AP7526 Basic Rack PDU 1U 22kW 400V (6) C19, IEC Input, Black, CE Approved
- MPN: AP7526
- UPC: 731304232667
- PPN: APC-AP7526
CAD
$1567.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Basic Rack PDU 1U 22kW 400V (6) C19, IEC Input, Black, CE Approved
Features
- Resettable circuit breakers — Enables a quick recovery from overload events.
Specifications
Additional
| Power Capacity | 22 kW |
|---|---|
| Nominal Output Voltage | 230 V |
| Output Connections | 6 C19 |
| Form Factor | 1U |
| Width | 17.2 in (43.7 cm) |
| Cord Length | 8.01 ft (2.4 m) |
| RoHS | Compliant |
| Input Voltage | 400 V 3-phase |
|---|---|
| Input Connection Type | IEC 60309 32 A 3P + N + PE |
| Mount Position | Front, Rear |
| Depth | 10.0 in (25.4 cm) |
| Height | 1.73 in (4.4 cm) |
| Color | Black |
| Approvals | CE, GOST, VDE |
