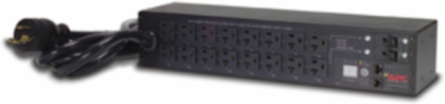

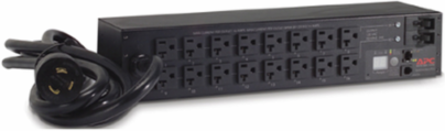

APC AP7902B Switched Rack PDU 2U 30A 120V 16x5-20 10 ft Cord Length
- MPN: AP7902B
- UPC: 731304331582
- PPN: APC-AP7902B
CAD
$2171.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
It is a switched rack PDU with a maximum current capacity of 30A and an input voltage of 120V. It includes 16 NEMA 5-20R outlets and a NEMA L5-30P input connection. The PDU has a 2U form factor and a cord length of 10 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed, ensuring high safety and performance standards.
Features
- Enables a quick recovery from overload events.
- It can handle a maximum current capacity of 30A, suitable for demanding applications
- It includes 16 NEMA 5-20R outlets, offering extensive connectivity
- The 2U form factor helps save rack space and improves cable management
- Allows for remote monitoring and control, enhancing power management capabilities
Documentation & Downloads
Specifications
Additional
| Input Voltage | 100 V, 120 V |
|---|---|
| Amperage | 30A |
| Input Frequency | 50/60 Hz |
| Height | 3.50 in (8.9 cm) |
| Depth | 4.49 in (11.4 cm) |
| Mount Position | front, rear, horizontal |
| Cord Length | 10 ft (3.05 m) |
| RoHS | Compliant with Exemptions |
| Mercury Free | Yes |
| WEEE | EU compliant disposal |
| Nominal Output Voltage | 120 V |
|---|---|
| Load Capacity | 2880 VA |
| Rack Height | 2U |
| Width | 17.52 in (44.5 cm) |
| Weight | 9.92 lb (4.5 kg) |
| Input Connection Type | NEMA L5-30P |
| Approvals | cUL Listed, CSA, Industry Canada, UL Listed |
| REACH SVHC Free | Yes |
| Lead Free | Yes |
| Country of Origin | Philippines |
