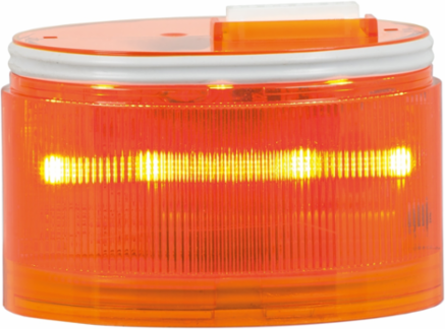

Radiant Bright LED Light Module, Steady, UL and cUL, Fresnel Lens, Amber
Federal Signal

Federal Signal RSL-LMB-F-A Radiant Bright LED Light Module, Steady, UL and cUL, Fresnel Lens, Amber

  • MPN: RSL-LMB-F-A
  • UPC: 782979236023
  • PPN: FDS-RSL-LMB-F-A
  • UNSPSC: 32151503

CAD

$158.61

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The RSL Radiant series is a high-performance line of modular LED stack lights engineered to meet a wide range of industrial signaling requirements. Featuring single-color LED modules available in steady burn light, high output steady burn light, or multi-pattern flashing with color fresnel, clear fresnel, or opaque optical lenses. Multi-color LED modules are available with fresnel or opaque lens. Select the steady or flashing module for pattern required with standard wiring module or use steady LED modules with multi-pattern wiring modules. Designed for both standard and advanced applications, the RSL Radiant offers a reliable and efficient solution for status indication and attention-critical environments.

Features

  • Modular design allows up to (7) light modules: (6) light modules & (1) sound module (one channel) or (5) light modules & (1) sound module (two channels)
  • Compatible with 12-24 Vac/dc or 120-240 Vac*
  • Single-color modules are available in Amber, Blue, Clear, Green, and Red
  • Multicolor modules feature seven colors (Amber, Blue, Clear, Cyan, Green, Magenta, and Red)
  • PLC compatible
  • Indoor/outdoor use
  • Type 4X, IP66 enclosure when installed with both gaskets included with each module
  • IP69K compliant when installed with both gaskets included on each module
  • CE and UKCA compliant
  • UL and cUL Listed

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Height
1.38 in
Weight
1.41 lbs
Color Option
Amber
Availability
In Stock - Ships in 2 Bus Days
Lens Style
Fresnel
Visual Signals Flash Pattern
Steady (Bright LED)
Visual Signals Lens Style
Fresnel
Lead Time
In Stock - Ships in 2 Bus Days
Width2.75 in
Depth1.97 in
Certification ListingCE, UKCA, UL, cUL
Flash Pattern TypeSteady
Lens ColorAmber
Operating Temp.-22° to +122°F (-30° to +50°C)
Visual Signals Lens ColorAmber
Environmental RatingOrdinary Location
Product Life Cycle StatusCompleted
