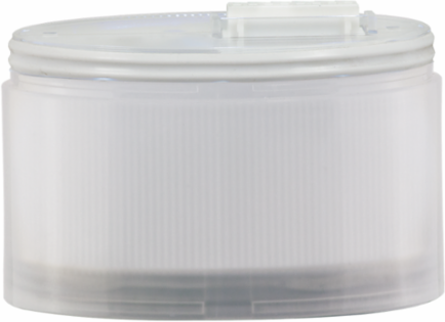

Federal Signal RSL-LM-RGB-O Radiant Multi-Pattern, Multicolor, LED Light Module, UL and cUL, Opaque Lens
- MPN: RSL-LM-RGB-O
- UPC: 782979100737
- PPN: FDS-RSL-LM-RGB-O
- UNSPSC: 32151503
CAD
$200.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The RSL Radiant series is a high-performance line of modular LED stack lights engineered to meet a wide range of industrial signaling requirements. Featuring single-color LED modules available in steady burn light, high output steady burn light, or multi-pattern flashing with color fresnel, clear fresnel, or opaque optical lenses. Multi-color LED modules are available with fresnel or opaque lens. Select the steady or flashing module for pattern required with standard wiring module or use steady LED modules with multi-pattern wiring modules. Designed for both standard and advanced applications, the RSL Radiant offers a reliable and efficient solution for status indication and attention-critical environments.
Features
- Modular design allows up to (7) light modules: (6) light modules & (1) sound module (one channel) or (5) light modules & (1) sound module (two channels)
- Compatible with 12-24 Vac/dc or 120-240 Vac*
- Single-color modules are available in Amber, Blue, Clear, Green, and Red
- Multicolor modules feature seven colors (Amber, Blue, Clear, Cyan, Green, Magenta, and Red)
- PLC compatible
- Indoor/outdoor use
- Type 4X, IP66 enclosure when installed with both gaskets included with each module
- IP69K compliant when installed with both gaskets included on each module
- CE and UKCA compliant
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 1.38 in
- Weight
- 1.41 lbs
- Color Option
- Multi-color
- Availability
- Available in 4-6 Weeks
- Lens Style
- Opaque
- Visual Signals Flash Pattern
- Multi-Pattern
- Visual Signals Lens Style
- Opaque
- Lead Time
- Available in 4-6 Weeks
Width2.75 in
Depth1.97 in
Certification ListingCE, UKCA, UL, cUL
Flash Pattern TypeSteady/1x Flash/3x Flash/Random
Lens ColorClear
Operating Temp.-22° to +122°F (-30° to +50°C)
Visual Signals Lens ColorMulticolor
Environmental RatingOrdinary Location
Product Life Cycle StatusCompleted
