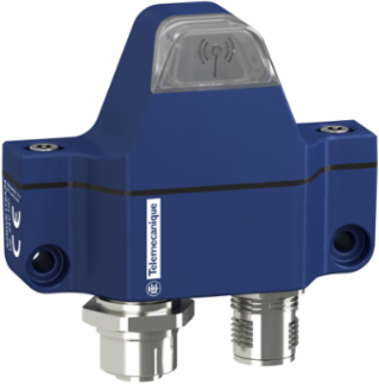

Telemecanique Sensors XZBWE112A24 Radio transmitter, wireless for sensors and switches
Telemecanique Sensors XZBWE112A24 Radio transmitter, wireless for sensors and switches
- MPN: XZBWE112A24
- PPN: TES-XZBWE112A24
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$664.25/ EA
Description
This product is part of the XZ range, an offer of cabling accessories. This wireless transmitter is dedicated to radio transmisson to a 24V sensor or limit switch.The communication port protocol conforms to ZigBee IEEE 802.15.4. This remote connection system, compatible with any sensor or limit switch, is used to reduce cabling. It has NPN or PNP for sensor discrete input and 1 LED green or orange for on/off sensor output. With external fuse and fast blow protection. It is furnished with 5-wire M12 female connector (sensor) and 4-wire M12 male connector (power supply) for electrical connection. It is a transmitter with a rated supply voltage of 24V DC, <15mA (-15% to 20%), a maximum supply current of 100mA at 24V without overload protection and a response time of <30ms. It is an IP55 rated product. Its dimensions are 66mm (Width) x 23mm (Depth) x 65mm (Height) and weighs 0.051kg. It is dedicated to applications where wiring or wire maintenance is not possible. This product is certified by CE. This multi sensor transmitter has 2 diameter 3.5mm fixing holes. The range of machine wiring connectors and cordsets has been designed for optimal user-friendliness, simplifying connection and providing quick and safe reference identification. Improved connection of sensors to the enclosure.
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Connection
- sensor 1 female connector M12, 5 || power supply 1 male connector M12, 4
- Maximum Supply Current For Sensors
- 100 mA 24 V without overload protection -15...20 %)
- Communication Port Protocol
- Zigbee IEEE 802.15.4
- Marking
- CE || cULus || FCC || IC
- Local Signalling
- sensor output 1 LED green or orange on/off || LED blinking no data transmission
- Net Weight
- 0.051 kg
- Voltage State 1 Guaranteed
- 20.4...< 24 V input
- Current State 0 Guaranteed
- <= 1.5 mA input)
- Maximum Sensing Distance
- 100 m in free field || 25 m in industrial environment
- Supply Voltage Limits
- 20.4-29 V DC
- Width
- 68 mm
- [Us] Rated Supply Voltage
- 24 V DC, <15 mA -15...20 %)
Power Consumption In W0.29 W 24 V DC
Height65 mm
Current State 1 Guaranteed1.6 mA input)
Response Time< 30 ms
Protection Typeexternal fuse, fast blow, 400 mA
Voltage State 0 Guaranteed> 0...7.2 V input
Contacts Type And CompositionNO
Discrete Input TypeNPN or PNP sensor
Zigbee Profilegreen power
Input Frequency0.5 Hz
Depth23 mm
Specifications
- Product Or Component Type
- radio transmitter
Number Of Inputs1 sensor per transmitter
Environment
- Product Certifications
- CE || cULus || FCC || IC
- Electromagnetic Compatibility
- conducted and radiated emissionsclass B CISPR 22
- Vibration Resistance
- +/- 7.5 mm 5-14 Hz)IEC 60068-2-6 || 2 gn 8-150 Hz)IEC 60068-2-6
- Relative Humidity
- 90-90 %, without condensation
Ambient Air Temperature For Operation-25-55 °C
Shock Resistance10 gn 16 ms) 6000 shocks IEC 60068-2-27
Ambient Air Temperature For Storage-40-70 °C
Ip Degree Of ProtectionIP67
